Swarovski ATX Zoom Module for Spotting Scope System

Swarovski ATX Zoom Module for Spotting Scope System

£2,019.00
£2,019.00
Sale Sold out
Taxes included.
  • Angled Viewing
  • Compatible with ATX Spotting Scope
  • SWARODUR/SWAROTOP High-Contrast Coatings
  • SWAROCLEAN Nonstick Coating
  • Fog and Waterproof Construction
  • 20mm Eye Relief
  • Twist-In Eyecups

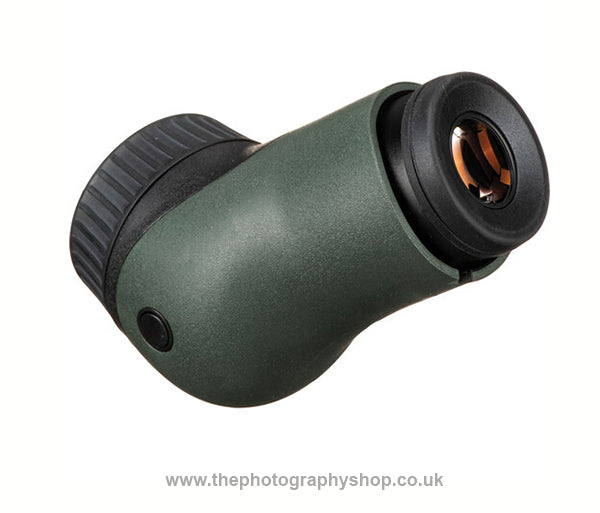

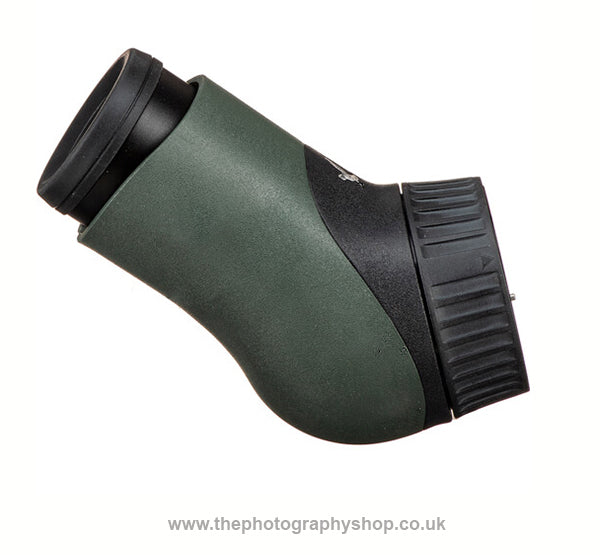

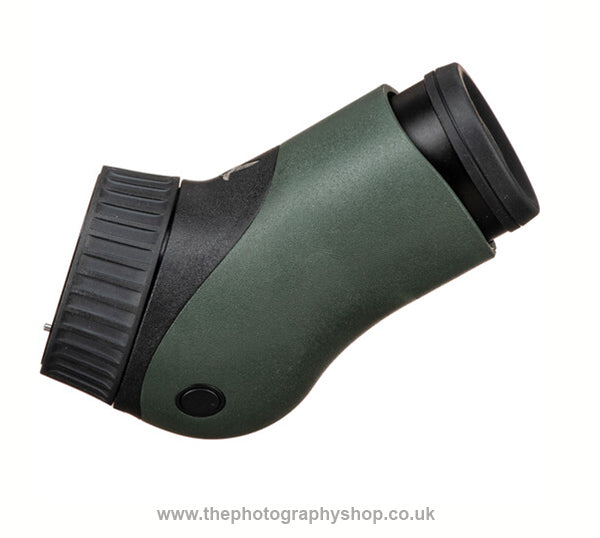

The ATX Spotting Scope Modular Zoom Eyepiece (angled viewing) from Swarovski is a wide-angle eyepiece specifically engineered for the ATX spotting scope series. The angled configuration is well-suited for digiscoping and long-duration observation with your premium Swarovski optics. This eyepiece is compatible with the ATX-65, ATX-85, and ATX-95 objective assemblies. Mounted with either the ATX-65 or ATX-85 objective assembly, this zoom eyepiece has a magnification range of 25-60x; when mounted on the ATX-95 model, the magnification range is 30-70x.

This configuration of the Modular Zoom Eyepiece seamlessly integrates with the DCB II and TLS APO digiscoping adapters. These optional accessories from Swarovski allow you to transform your ATX spotting scope into a formidable digital imaging platform. The accessory adapters enable integration with point-and-shoot, mirrorless, and DSLR camera systems, and they feature the build-quality and thoughtful engineering you expect from Swarovski. Now your superior optics can be used to capture high-definition stills and video of that rare bird or butterfly in your sight.

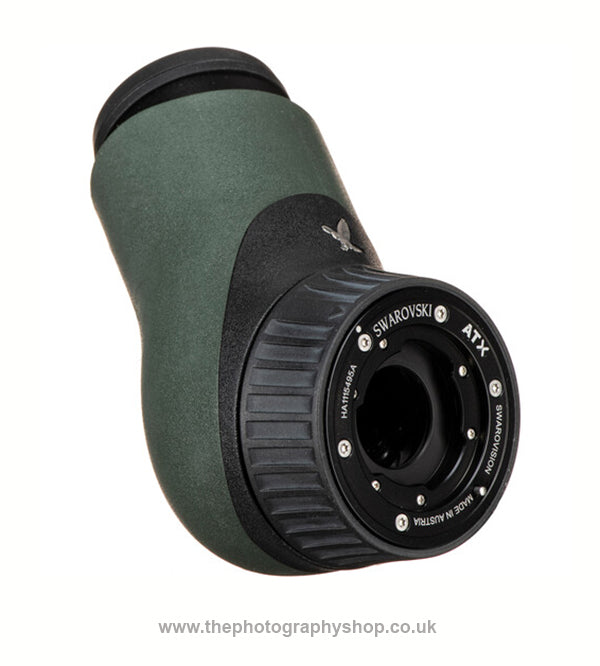

Ergonomic handling and user-friendly functionality makes the ATX eyepiece an observer's delight. The eyepiece quickly attaches/detaches from the objective assembly's bayonet mount, making the scope easy to disassemble, transport, and store. Swarovski engineered the angled-view eyepiece's focus dial to precisely align with the zoom dial on the objective assembly, enabling one-handed adjustments to field of view and zoom. This feature is especially useful when tracking an object, requiring one hand to guide the tripod head. This eyepiece's generously wide viewing angle, extra-long eye relief, and click-stop twist-in eyecup makes using your ATX spotting scope a world-class glassing experience.

Optical Performance

  • 25-60x zoom range (with ATX-65, ATX-85)
  • 30-70x zoom range (with ATX-95 only)
  • Apparent angle of view: 71-57°
  • Angle of view: 2.37-1.3° (ATX-65, ATX-85), 1.98-1.09° (ATX-95 only)
  • SWAROCLEAN nonstick coating on ocular surface
  • Phase-corrected roof prisms

Use and Handling

  • Extra-long 20mm eye relief
  • Click-stop twist-in (and removable) eyecup
  • One-handed operation via side-by-side zoom and focus dials
  • Grooved zoom dial
  • Mounts seamlessly with ATX objective assembly
  • Digiscoping compatible with point-and-shoot, mirrorless, and DSLR cameras

Construction Details

  • Lightweight and rugged housing
  • Supple yet durable rubber armor
  • Nitrogen-purged interior for fog and waterproof performance
  • -13 to 131°F (-25 to 55°C) operating temperature
  • Submersible to 13'

What’s Included?

  • Swarovski ATX Spotting Scope Modular Zoom Eyepiece (Angled Viewing)
  • Objective Lens Cover
  • Tethered Eyepiece Cover
  • Limited 10 Year Warranty

Specification

Magnification

With ATX-65, ATX-85 Scopes: 25 to 60x
With ATX-95, ATX-115 Scopes: 30 to 70x

Angle of View

With 65 mm, 85 mm Scopes: 2.4 to 1.3° (Actual)
With 95 mm, 115 mm Scopes: 2 to 1.1° (Actual)
71 to 57° (Apparent)

Field of View

With ATX-65, ATX-85 Scopes: 124 to 68' @ 1000 yd / 37.8 to 20.7 m @ 1000 m
With ATX-95, ATX-115 Scopes: 104 to 57' @ 1000 yd / 31.7 to 17.4 m @ 1000 m

Minimum Focus Distance

With 65 Scopes: 6.9' / 2.1 m
With 85 Scopes: 11.8' / 3.6 m
With 95, 115 Scopes: 15.7' / 4.8 m

Exit Pupil Diameter

With ATX-65 Scopes: 2.6 to 1.1 mm
With ATX-85 Scopes: 3.4 to 1.4 mm
With ATX-95, ATX-115 Scopes: 3.2 to 1.4 mm

Eye Relief

20.0 mm

Diopter Correction

+5.0

Environmental Protection

Water-Resistant (Unrated)

Package Weight

3.33 lb

Box Dimensions (LxWxH)

10.45 x 5.95 x 4.7"
