Saramonic

Microphone Kit Wireless = Saramonic UwMic9 TX9 + RX9 Camera-Mount Omni Lavalier

Microphone Kit Wireless = Saramonic UwMic9 TX9 + RX9 Camera-Mount Omni Lavalier

Regular price £279.95
Regular price Sale price £279.95
Sale Sold out
Taxes included.

Saramonic UwMic9 TX9 + RX9 Camera-Mount Wireless Omni Lavalier Microphone Kit


Brand New UK Stock, boxed with full Guarantee

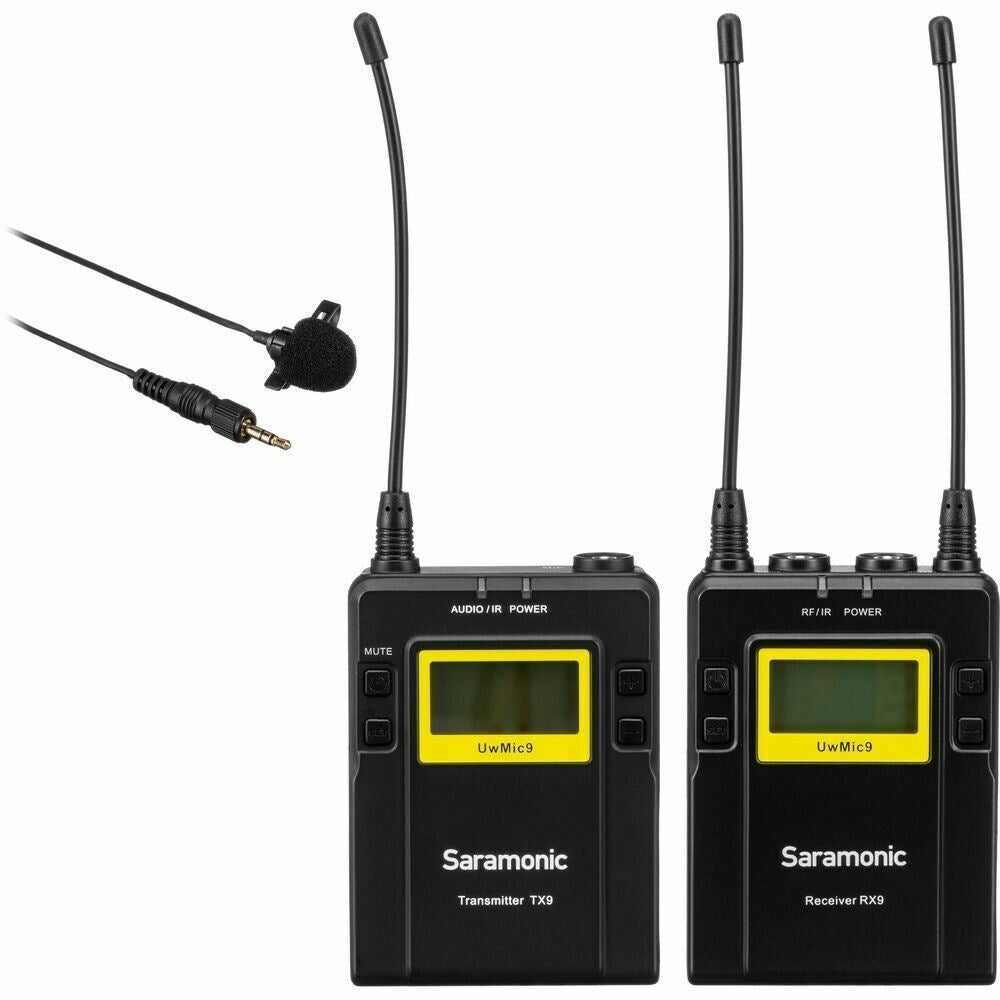

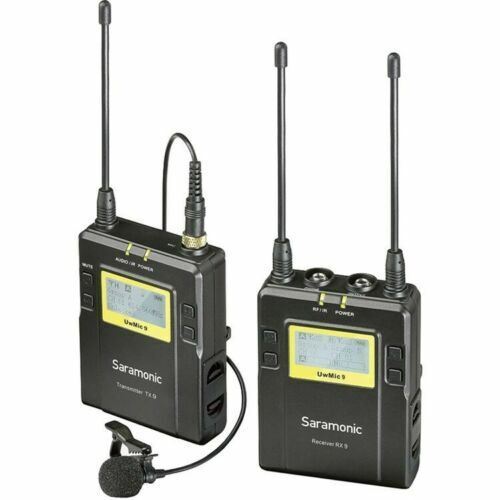

The Saramonic UwMic9 1-Person Camera-Mount Wireless Omni Lavalier Microphone System is a portable wireless system for capturing audio with a single subject. It can be used in several environments for video, field recording, interview, broadcast TV, and ENG applications.

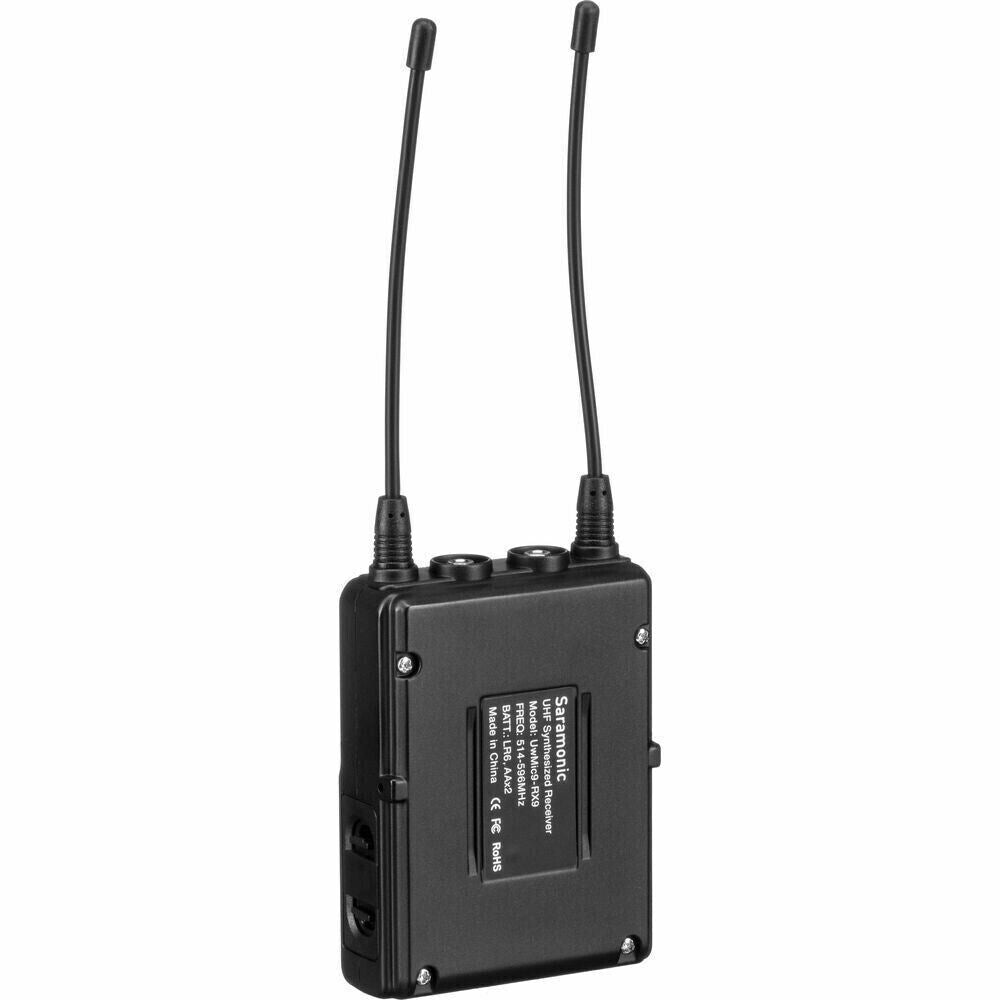

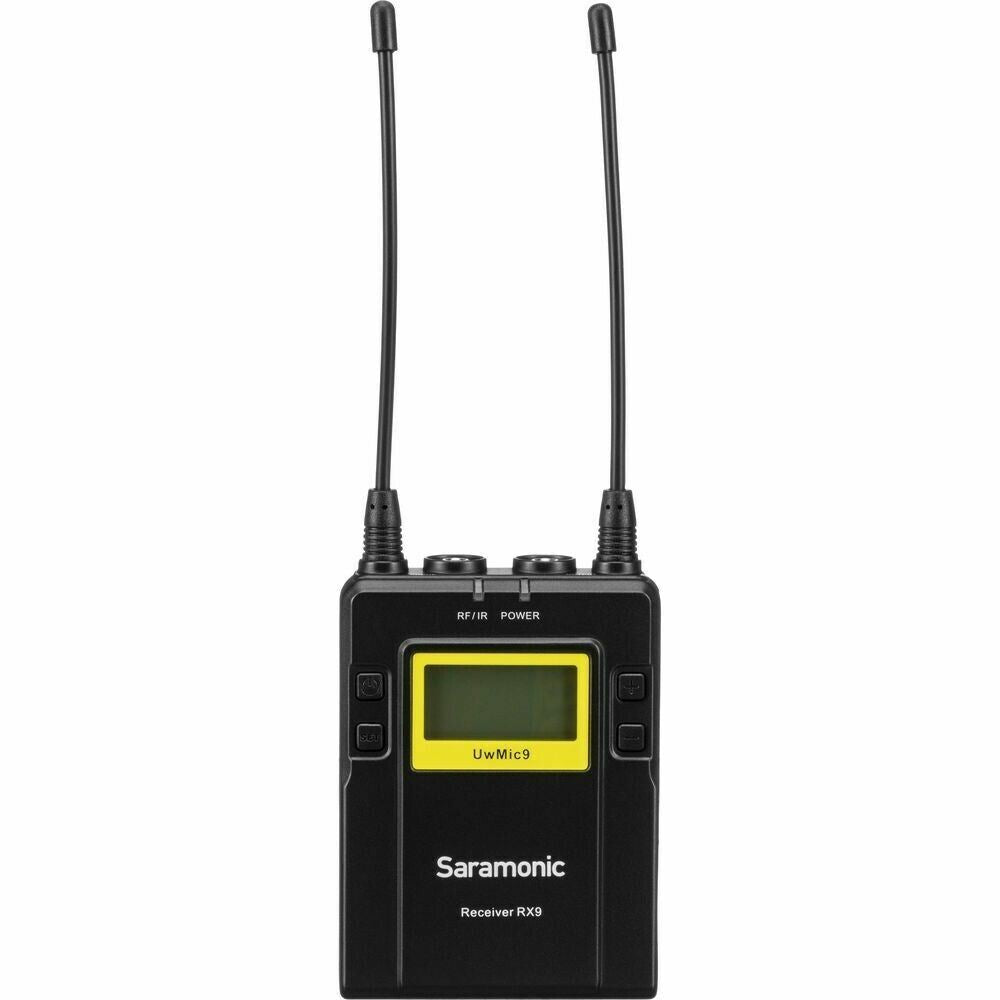

The system's RX9 camera-mountable receiver features a wide-switching RF bandwidth and an easy-to-read LCD display. It is built with infrared synchronisation between transmitter and receiver, an auto-scan function, and can search for an available transmission frequency. The headphone jack provides real-time monitoring with headphones, which is useful for cameras that lack a monitor output.

The compact transmitter employs a crystal-controlled PLL synthesizer and are equipped with a muting function. The RF power output can be switched between high, middle, and low settings. In addition, each transmitter is built with a 1/8" type mic input. Also, included with this system are two lavalier microphones, a shoe-mount adapter, a single 1/8" to XLR output cable, and a single 1/8 to 1/8" output cable.

Key Features

  • For Mobile Journalism, Video, Vlog

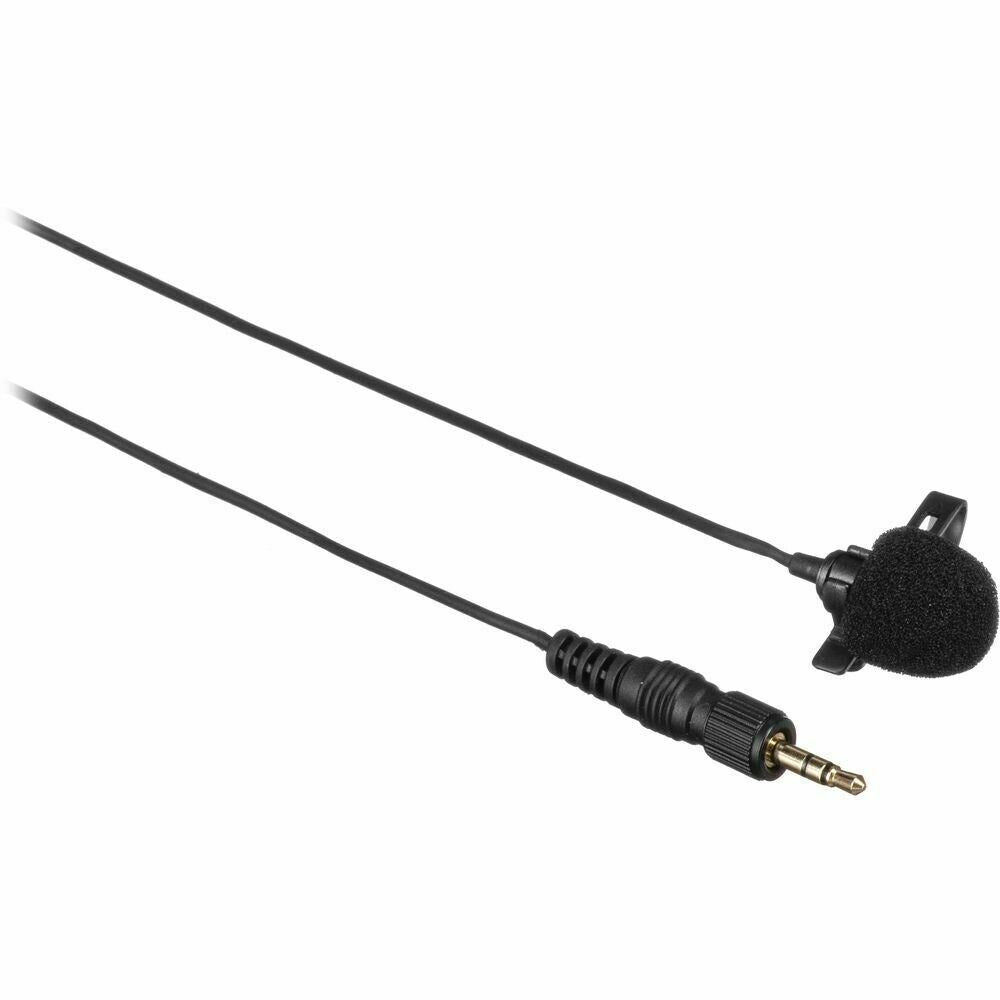

  • 1 x SR-M1 Omnidirectional Lav Mics
  • 1 x Rugged Bodypack Transmitters
  • 1-Channel Camera-Mount Receiver.
  • 96 Auto-Scan Frequencies.
  • Headphone Output.
  • 6-Hr AA Batteries.
  • Up to 8 Mics On Set / 330' Range

Specifications

Receiver:

  • Channels: Dual Channel Available
  • Frequencies: 96, A & B group
  • Oscillator Type: PLL synthesizer
  • Audio Output Connector: 1/8" (3.5 mm) jack
  • Antenna: 1/4 wave wired.
  • Audio Output Level: -60 dBV
  • Headphone Output Level: 30 mW (16 Ohms)
  • Receiving Frequency: 514 to 596 MHz
  • Receiving Sensitivity: -95 dBm
  • Signal to Noise Ratio: 70 dB or more
  • Voice Delay: 12 ms
  • Reference Deviation: ±5 kHz (-60 dBV, 1 kHz input)
  • Frequency Response: 40 Hz to 18 kHz (±3 dB)
  • Distortion: 0.5% or less
  • Spurious and Harmonic Suppression: -60 dB
  • Batteries: Two AA size batteries
  • Dimensions: 6.7 x 2.5 x 1.2" (17 x 6.4 x 3.0 cm)
  • Weight: Approx. 7.72 oz (219 g) excluding batteries

Transmitter

  • Channels: 96, A & B group
  • Oscillator Type: PLL synthesizer
  • Audio Carrier Frequencies: 514 to 596 MHz
  • Reference Deviation: ±5 kHz (-60 dBV, 1 kHz input)
  • Signal to Noise Ratio: 70 dB or more
  • Spurious and Harmonic Suppression: -60 dB
  • Voice Delay: 12 ms
  • Antenna: 1/4 wave wired
  • Audio Input Connectors: 1/8" (3.5 mm) jack
  • Audio Input: -60 dBV (MIC input, 0 dB attenuation)
  • RF Output Level: 30 mW / 20 mW / 10 mW selectable
  • Battery: 2 x AA size batteries
  • Operating Temperature: 32 to 122°F (0 to 50°C)
  • Storage Temperature: -4 to 131°F (-20 to +55°C)
  • Distortion: 0.5% or less
  • Dimensions: 6.7 x 2.5 x 1.2" (17 x 6.3 x 3.0 cm)
  • Weight: Approximately 7.46 oz (211.4 g) excluding batteries
