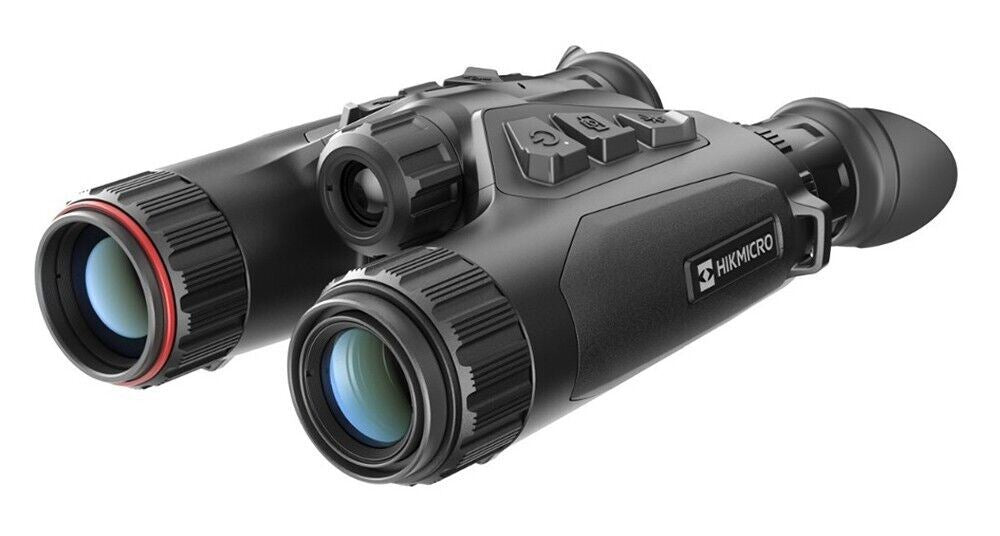

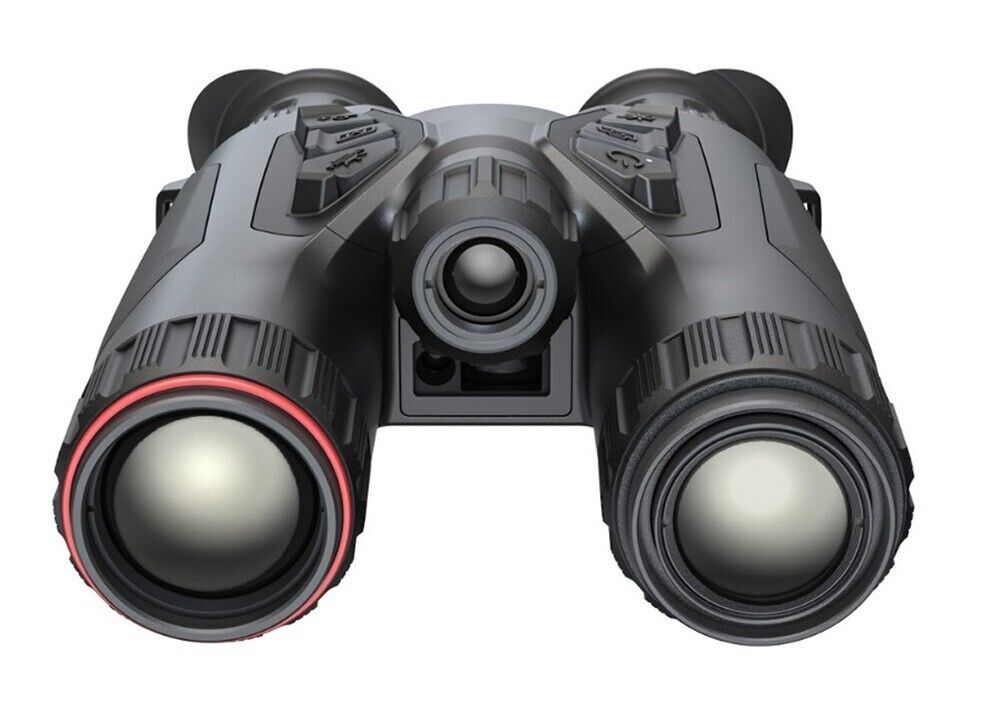

HikMICRO Habrok 4K 25mm 256x192 35mk MultiSpectrum Thermal Digital LRF Binocular

HikMICRO Habrok 4K 25mm 256x192 35mk MultiSpectrum Thermal Digital LRF Binocular

Brand New UK Stock, boxed with full Guarantee

• 256 × 192 resolution @12 μm thermal detector
• High sensitivity thermal module NETD < 35 mK (@25°C, F# = 1.0)
• 25 mm, F1.0 lens with thermal detection range up to 1200 m
• 3840 × 2160 4K ultra high-resolution CMOS detector
• 60 mm, F2.2 digital lens with 5.5x to 22x digital zoom
• 1920 × 1080 resolution 0.49-inch OLED display

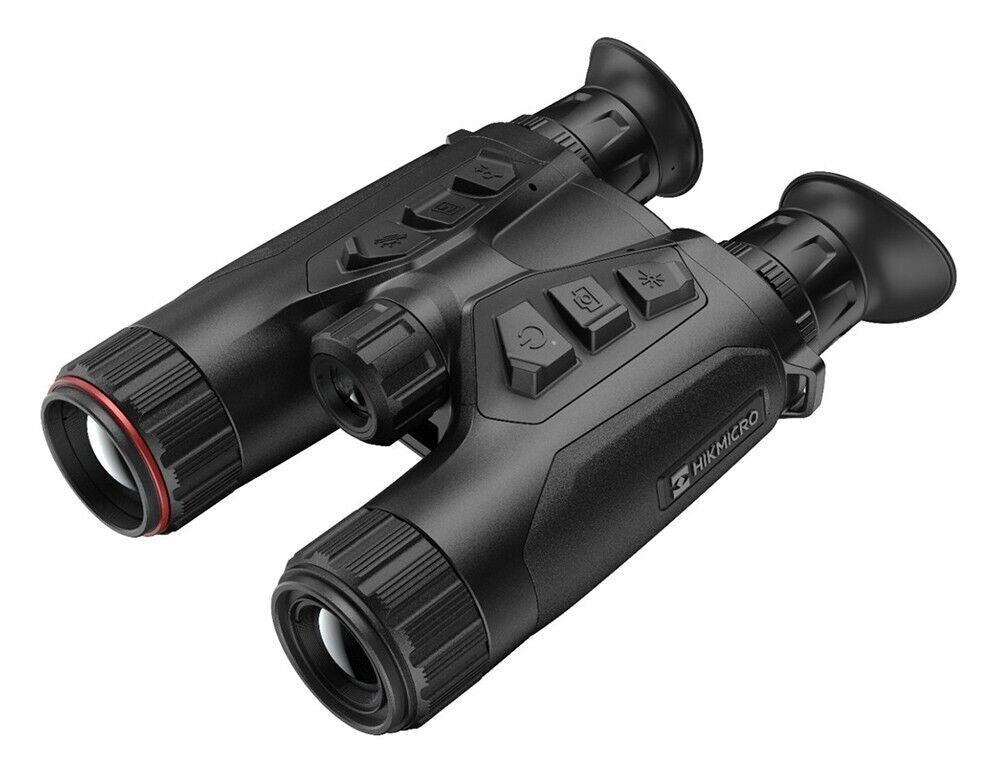

Introducing the brand new entry level HIKMICRO Habrok 4K multi-spectrum thermal LRF binocular which combines the detection power of a 256x192 thermal sensor with a high resolution 4K optical camera that not only delivers superb daylight clarity but an extreme twilight and darkness performance.

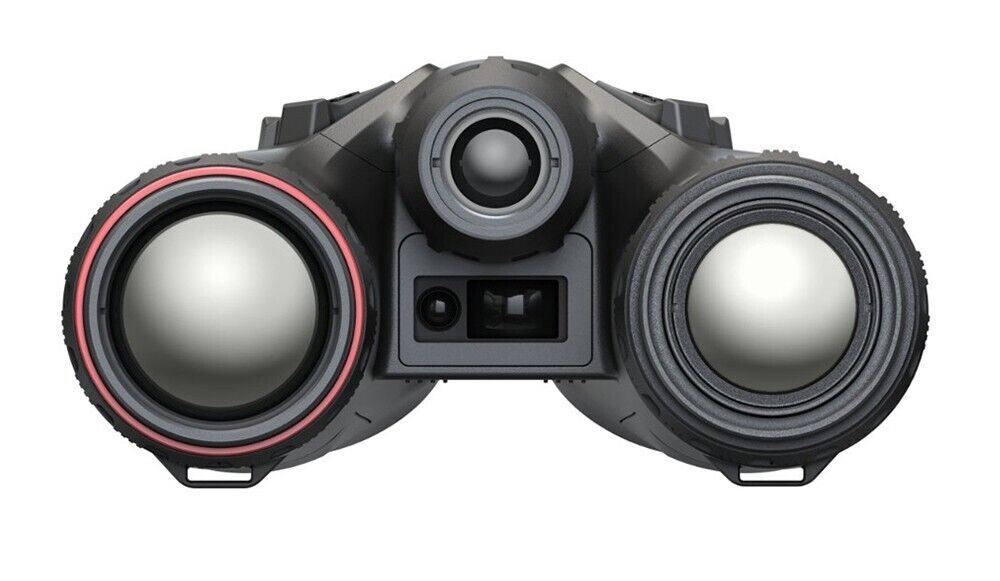

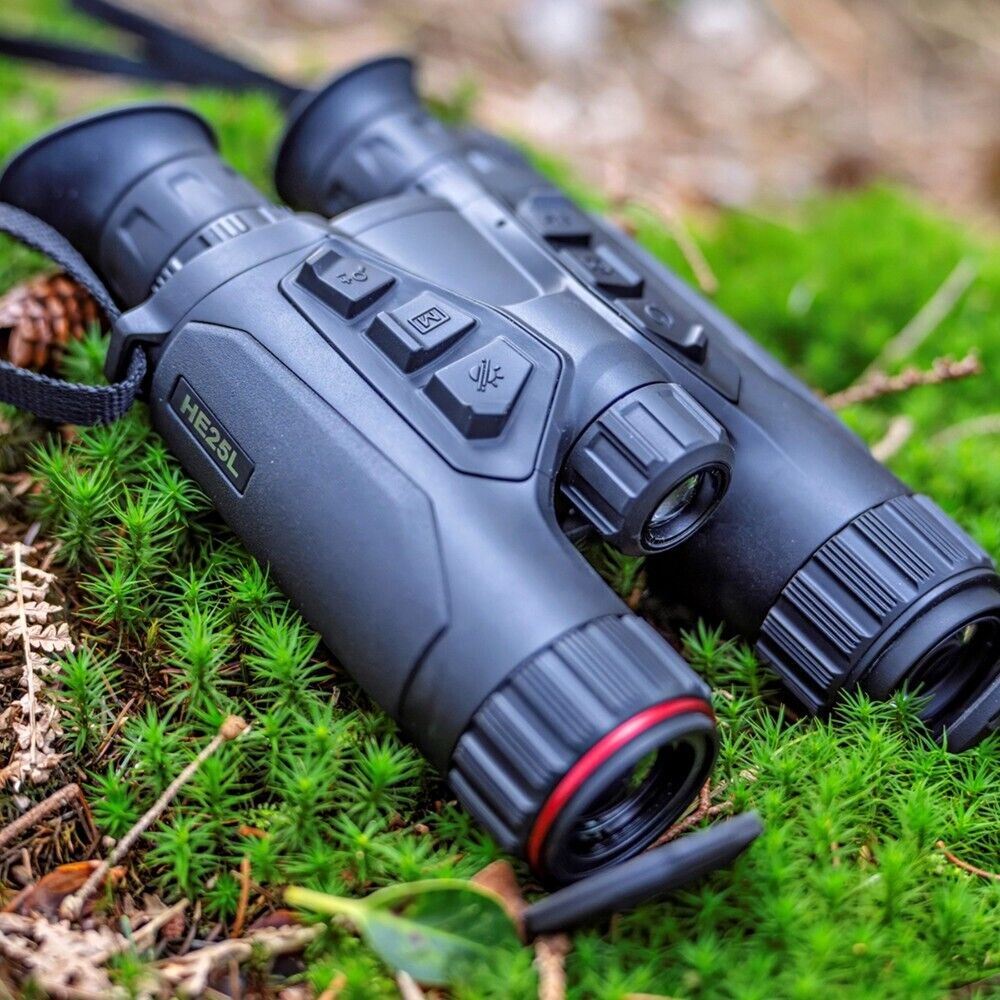

The HIKMICRO Habrok 4k HE25L is built around a robust & lightweight magnesium alloy chassis the HE25L combines a Sub 35mK NETD, 256px thermal sensor with a 4K digital optical channel, plus built-in infrared night vision, and a 1000m laser range finder to deliver an all-in-one device that does many things that a conventional analogue optic cannot:

High performance thermal spotting will detect the heat of birds and animals and reveal their location even when hidden to the naked eye by camouflage, shadows, foliage and difficult light and weather. Thermal spotting works day & night.

The 4K digital optical channel adds a full colour ultra high resolution image in daylight, and a monochromatic image even in complete darkness.

Zoom from the 5.5x base mag all the way to 22x – In optical mode the 4K sensor ensures that you never run out of resolution across a wide magnification range.

The Habrok 4K digital optical channel in twilight is a particular stand-out, The digital system works extremely well in low light, well beyond the point that regular binoculars stop delivering an image.  (and on, into complete darkness).

Find, watch and enjoy wildlife in complete darkness thermal and night vision add another dimension to your wildlife observation.

Powered by 18650 batteries with a run time of up to 8hrs from the two detachable batteries, you can enjoy extended trips into nature without fear of running out of power.

The ability to record images, video and audio directly into the on-board memory, and play it back either in the device or to a phone or tablet nearby, means that even a fleeting glimpse of a bird or animal can be reviewed in detail for greatly improved identification potential.

The HikMicro Habrok 4K thermal channel will find more, and the digital optical channel will reveal more.

Anyone who has used traditional optical binoculars will feel instantly at home with the size and weight of the Habrok 4K but with so much tech built in to enhance your outdoors experience. Quickly detect in thermal, view in the optical channels and record to the inbuilt memory. The HIKMICRO Habrok 4K is the binocular for the future.

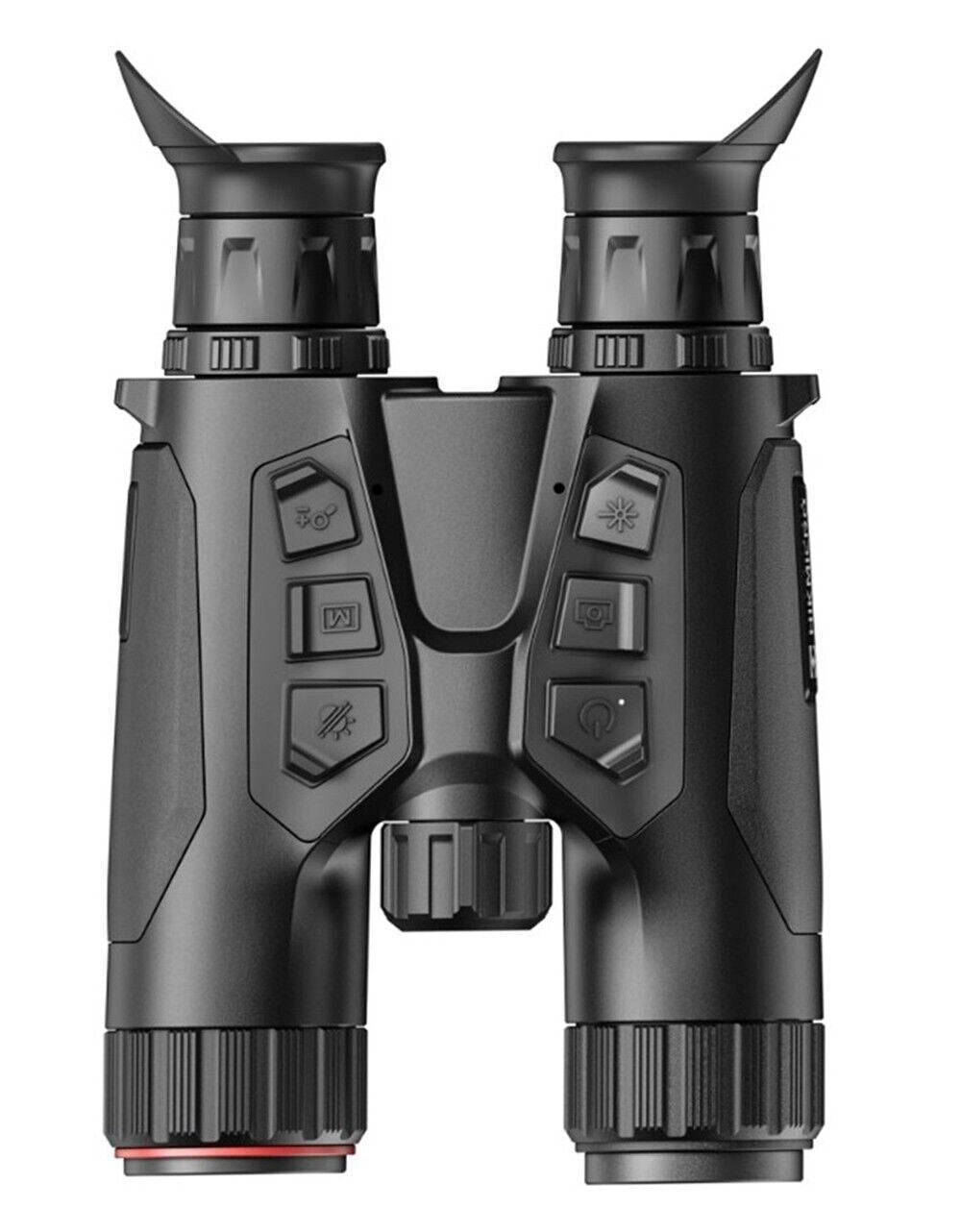

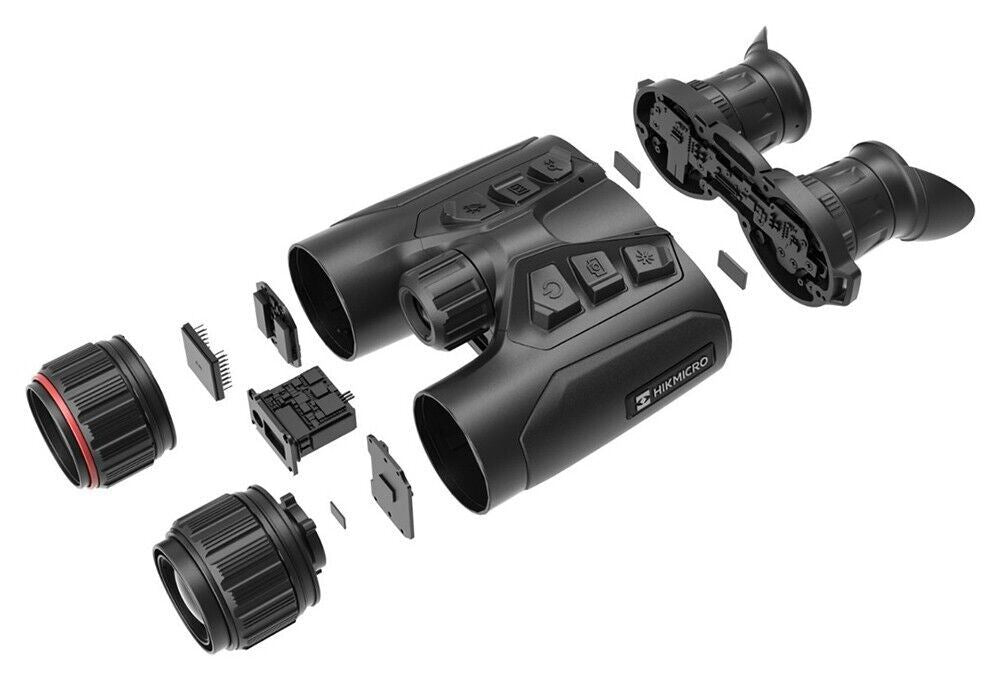

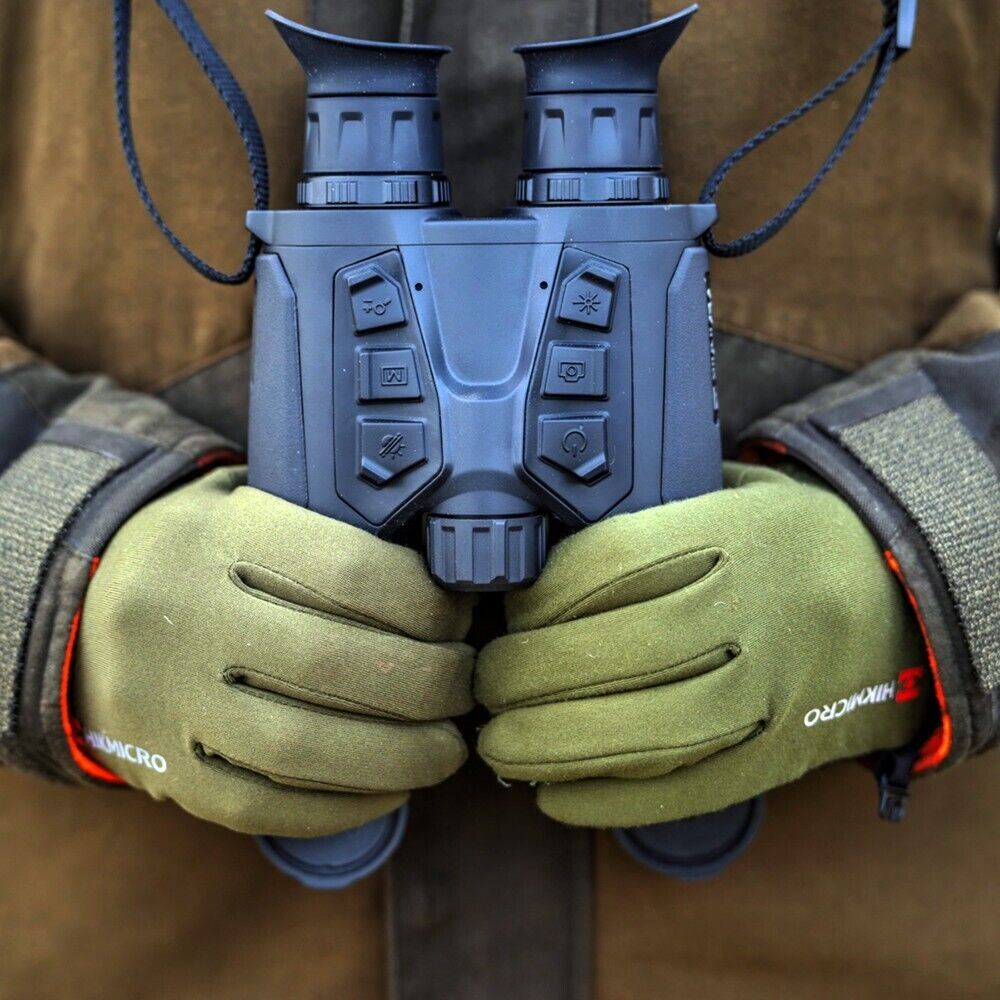

The robust and ergonomic Magnesium Alloy chassis exudes quality while also putting all of the major controls at your fingertips. This allows you to intuitively switch between the different image modes and take control of the other features including the 1000m laser range finder, even in the dark.

The Habrok is powered by two easily replaced 18650 batteries delivering extended run time.

The comfortable eye cups and inter-pupillary adjustment in the eyepieces allow you to find the perfect fit for your eyes and offer a great view of the large OLED display. You can also use the HIKMICRO Sight app to stream your activity to your mobile device so your friends can share your view or you can remotely observe. You can record videos and images to the inbuilt memory and share them later on your social channels.

Specification

Thermal Module

Image Sensor: VOx Uncooled Focal Plane Arrays

Max. Resolution: 256 × 192

Frame Rate: 50 Hz

Pixel Interval: 12 μm

Response Waveband: 8 μm to 14 μm

NETD: Less than 35 mK (@25°C), F# = 1.0

Lens (Focal Length): 25 mm, F1.0

Focus Mode: Focus Ring

Detection Range: 1200 m

Min. Focusing Distance: 3 m

Magnification: 4.3x to 17.2x (4x)

Field of View (H × V): 7.0° × 5.3°/12.2 m × 9.3 m @100m

Optical Module

Image Sensor: 1.88’’ Progressive Scan CMOS

Max. Resolution: 3840 × 2160

Focal Length: 60 mm, F2.2

Min. Working Distance: 8 m

Focus Mode: Focus Ring

Magnification: 5.5x to 22.0x(4x)

Field of View (H × V): 6.9°× 4.1°/12.0 m × 7.2 m @100 m

Smart IR: Yes

IR Illuminator Wavelength: 850 nm

Viewing Range at Night: 400 m

Image Display

Display: 0.49 inch, OLED, 1920 ×1080

Palettes: Thermal (Black Hot, White Hot, Red Hot, Fusion); Optical (Day, Night, Auto)

FFC (Flat Field Correction) Mode: Auto, Manual, External Correction

Exit Pupil: 8 mm

Eye Relief: 15 mm

Diopter (Range): -5 D to +3 D

Brightness Adjustment: Yes

Tone Adjustment: Cold, warm

Contrast Adjustment: Yes

Zoom Pro: Yes

System

Record Video: Yes

Capture Snapshot: Yes

Audio Recording: Yes

Standby Mode: Yes

Storage: Built-in EMMC (64 GB)

PIP: Yes

Hotspot: Yes

Hot Track: Yes

Digital Magnetic Compass: Yes

GPS: Yes

Local Album: Yes

Power Supply

Battery Type: Replaceable and Rechargeable Li-ion Battery

Battery Operating Time: ≥ 8 h (25°C, with hotspot off)

Type-C Power Supply: 5 VDC, 2 A

Supports External Power Supply: Yes

General

Protection Level: IP67

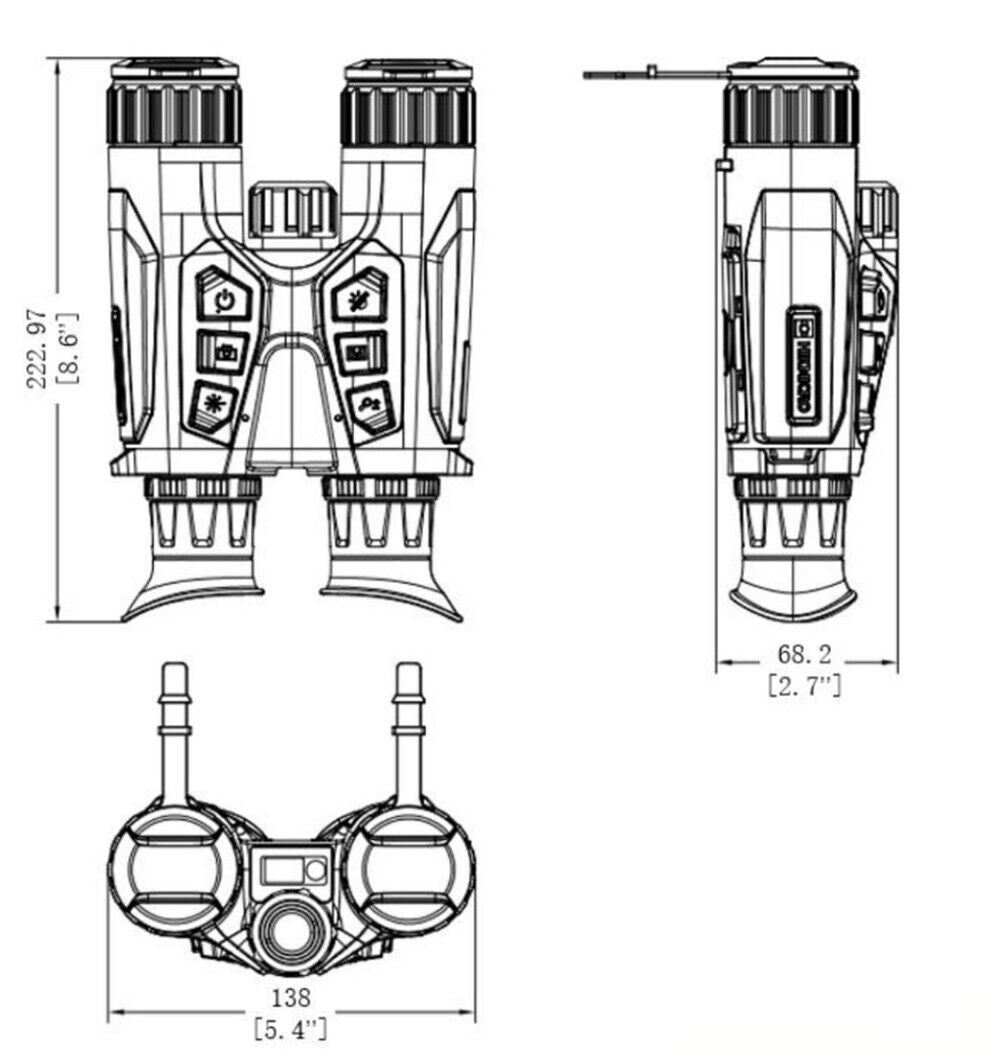

Dimension: 138 mm × 68.2 mm × 223 mm (5.4" × 2.7" × 8.6")

Working Temperature: -30°C to +55°C

Weight: 795 g without batteries

Inter-pupillary Adjustment Range: 60 mm to 74 mm

Mounting Adapter: 1/4“-20-UNC

Laser Rangefinder

Safety Class for Laser: Class 1

Wavelength: 905 nm

Max. Measuring Range: 1000 m

Measurement Accuracy: ±1 m

Min. Measuring Range: 10 m

What’s Included?

HIKMICRO Habrok HE25L 25mm 5.5-22 x 60 4K Multi-Spectrum 256x192 <35mK 12um LRF Entry Level Thermal Binoculars

Neck strap

Type-C Cable

Tripod adaptor

Battery

QSG

Lint-free cloth

Battery charger

WARRANTY

3-Year HIKMICRO Warranty

HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
