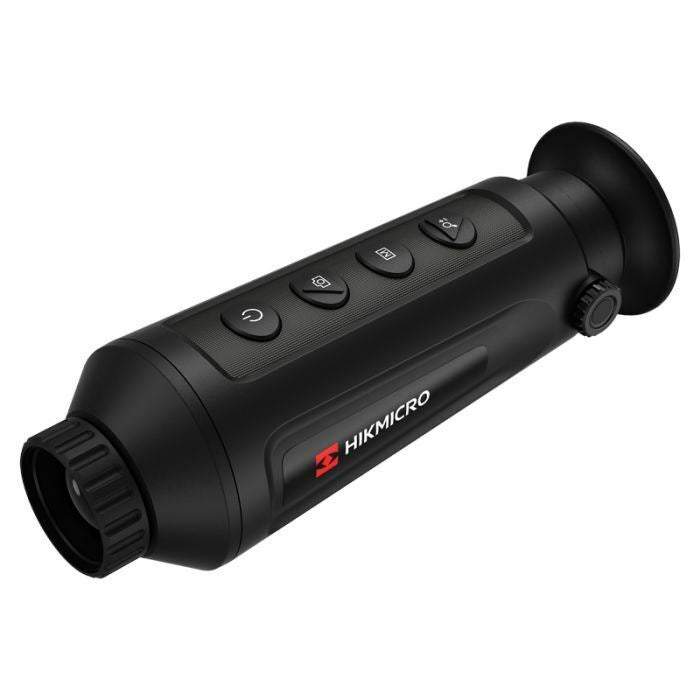

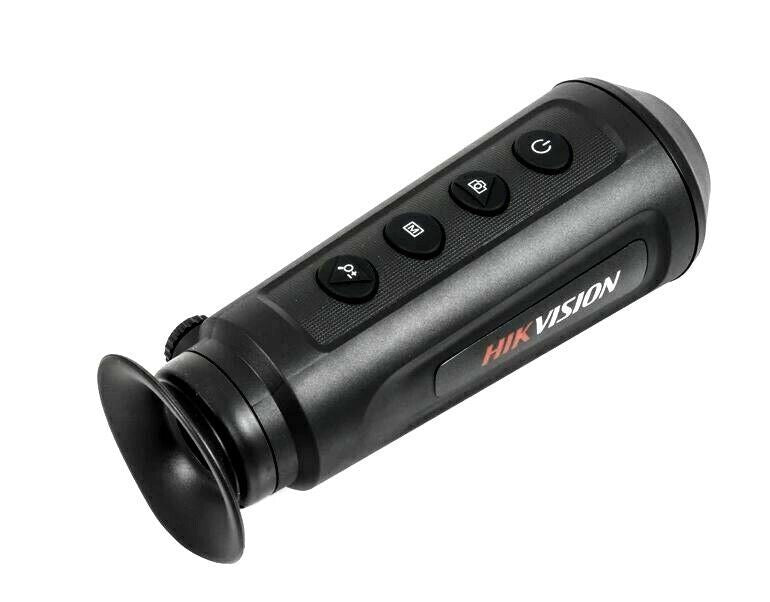

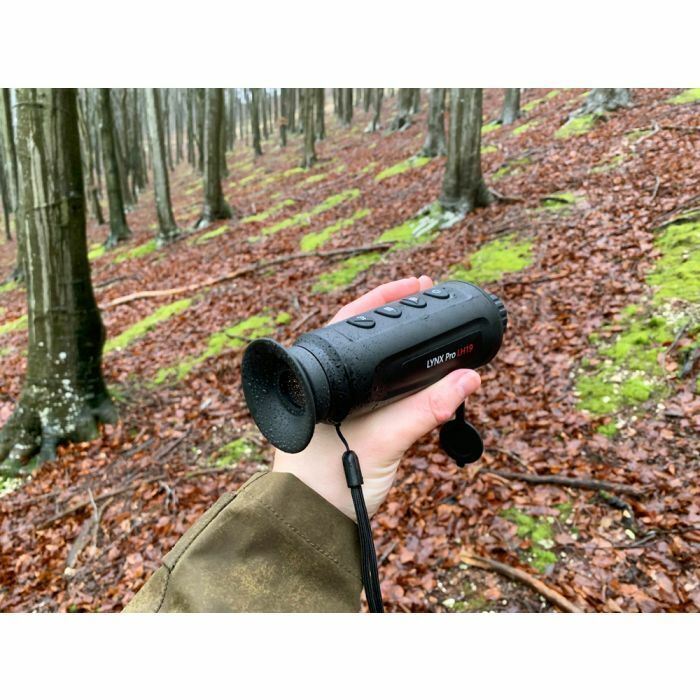

HIK Micro Lynx PRO Thermal 19mm Monocular 35mK Smart Night Vision # HM-LH19

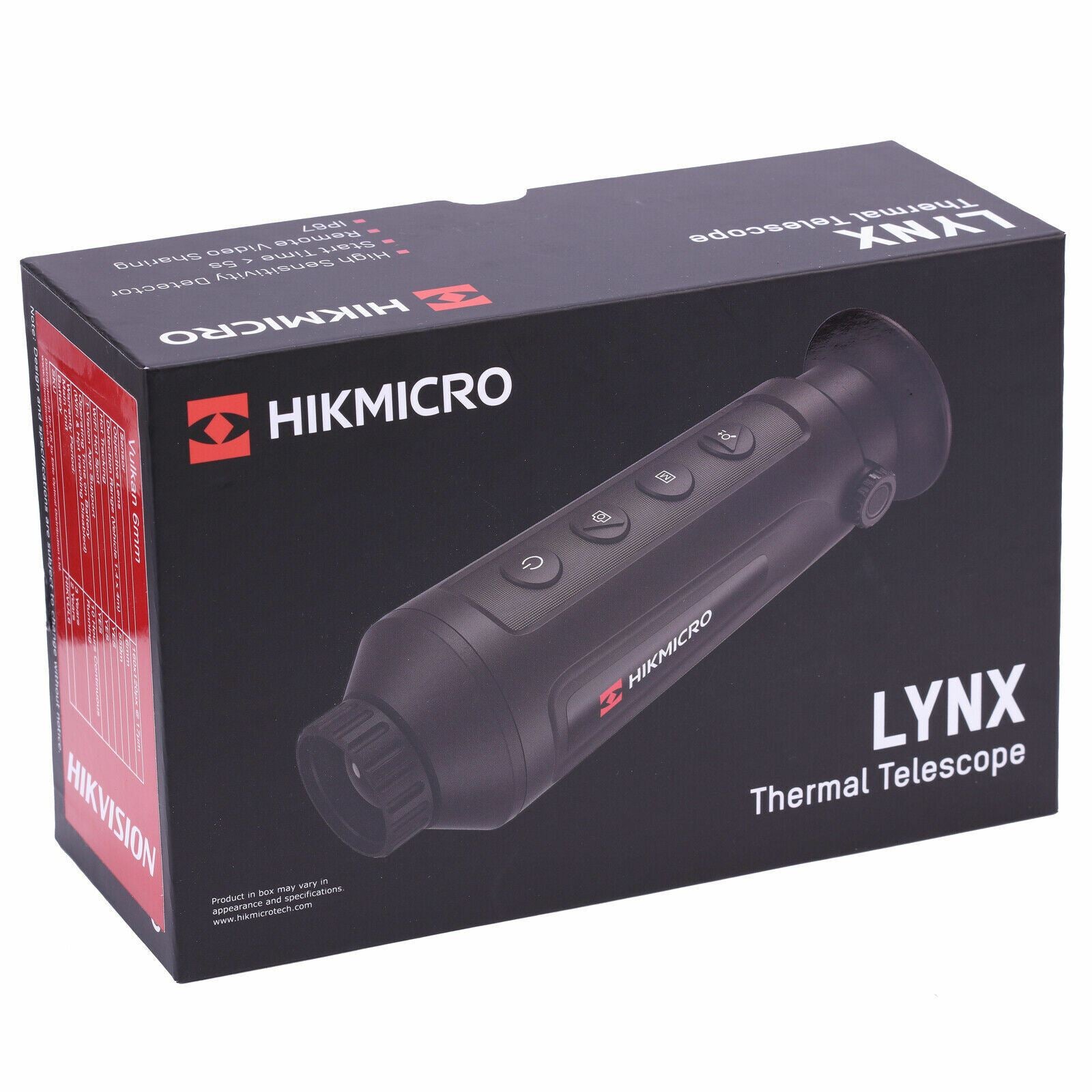

REFURBISHED UK Stock, boxed with full Guarantee
These are fully checked, boxed units but only have a 1 Year warranty, they have all been quality controlled by HikMicro - grab a bargain whilst stocks last!
The HIK Micro Lynx Pro 19mm bridges the gap between the 15mm and 35mm models by introducing many of the features found on the premium models into a more cost-effective package.

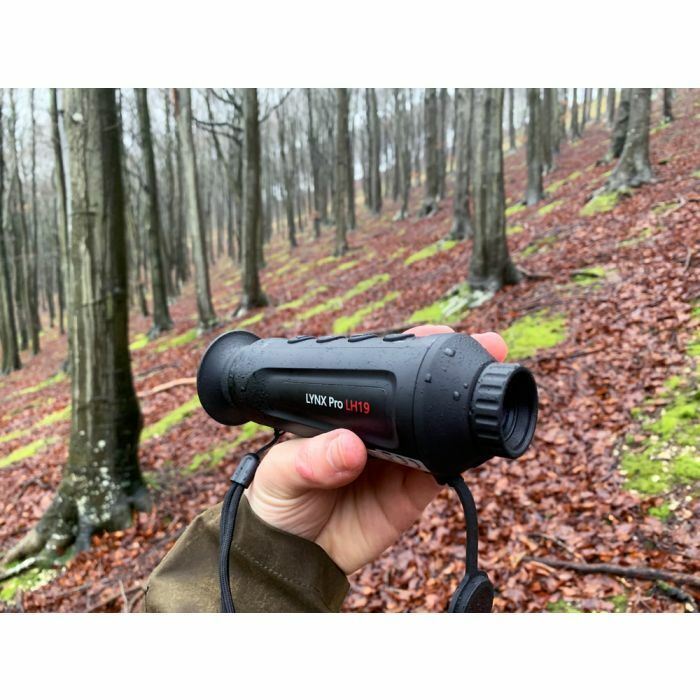

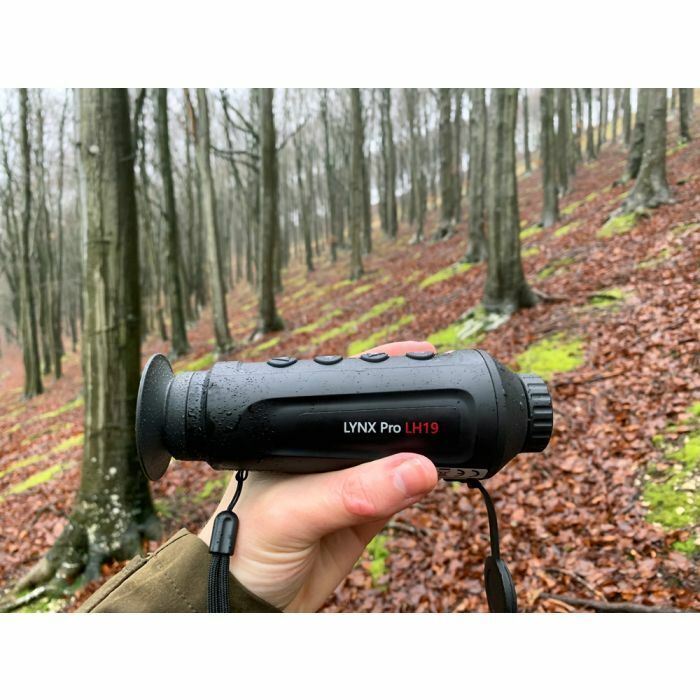

The Lynx Pro is built on the same compact chassis as the popular, pocket-sized 15mm model from HIK Micro but with the key additional feature of a focus ring around the objective lens. This allows you to precisely adjust the image to optimise your view over a wide range of distances.
The Lynx Pro is the first Thermal Monocular from HIK Micro to use a 384x288px 12µm sensor. This change in pixel pitch boosts your magnification up to 1.8x allowing a detection distance of 897m (Human size target) whilst also helping to reduce the cost of the unit.
HIK has also included the large screen from the 35mm models, producing a clear and easy-to-use view of your surroundings.
You will find all of the usual HIK Micro features; 4 colour profiles, digital magnification up to 8x and T-Vision App compatibility; Connect, Stream and Record to your smart phone.
35mK NETD Rating - one of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
Objective Focus Ring - precisely adjust the image to optimise your view over a wide range of distances.
384x288px 12µm sensor - this change in pixel pitch boosts your magnification up to 1.8x allowing a detection distance of 897m (Human size target).
1280 x 960px LCOS Screen - featuring the same large screen from the 35mm models, producing a clear and easy-to-use view of your surroundings.
Hot Track - activate Hot Tracking and your Lynx Pro will highlight the hottest spot detected in the current frame with a green crosshair.
4 Colour Profiles
8x Digital Magnification
T-Vision App compatibility - Connect, Stream and Record to your Smart Phone.
Specification
Sensor 384×288px @ 12µm
Objective Lens 19mm
Detection Range (Vehicle 1.4 x 4m)
Detection Range (Human 1.8 x 0.5m) 897 m
Type Vanadium Oxide Uncooled Focal Plane Arrays
Resolution, pixels 384 × 288 px
Pixel pitch, µm 12µm
Frame rate, Hz 50 Hz
NETD <35mK
Objective lens F1.0
Magnification (Optical) 1.86x
Magnification (Digital) 1x, 2x, 4x, 8x
Field of view 13.8° × 10.4° (H × V)
Type 10 mm LCOS
Resolution, Pixels 1280 x 960
Colour Palettes Black Hot, White Hot, Red Hot, Fusion
Video / Photo resolution
Video / Photo format
Build in memory, Gb 8 Gb
Hot Tracking YES
WiFI hot spot YES
T-Vision App support YES
Degree of protection, IP code IP67
Dust protection Protected against dust ingress
Water protection Protected against temporary submersion in water
Operating temperature range -20 °C to 55 °C
Dimensions, mm 171 mm × 61 mm × 57 mm
Weight, kg 0.31 kg
Operating time on battery =(WiFi & Hot tracking disabled) 7.5 hours continuous running
Charging interface USB-C
Battery capacity after 1000 cycles 80%
Warranty Period = 1 Year
Brand HIK Micro
Popularity HIK Micro Lynx PRO 19mm 35mK 384x288 12um Smart Thermal Monocular
SKU HM-LH19
Unit Type Thermal
Colour Palettes Yes
Detection Range 900m
Display Resolution 1280x960
Display Type LCOS
FOV @ 100 yards 10.0°
Magnification (Digital) 8x
Magnification (Optical) 1.9x
NETD <35mK
Objective Lens Diameter 19mm
Operating Temperature -20/+55°C
Pixel Pitch 12μm
Refresh Rate 50HZ
Sensor Resolution 384x288
Video / Sound Recording Yes
WiFi Yes
