HIK Micro Lynx PRO 2.0 Thermal 25mm Monocular 25mK Smart Night Vision HMLH25-2.0

HIK Micro Lynx PRO 2.0 Thermal 25mm Monocular 25mK Smart Night Vision HMLH25-2.0

Brand New UK Stock, boxed with full Guarantee

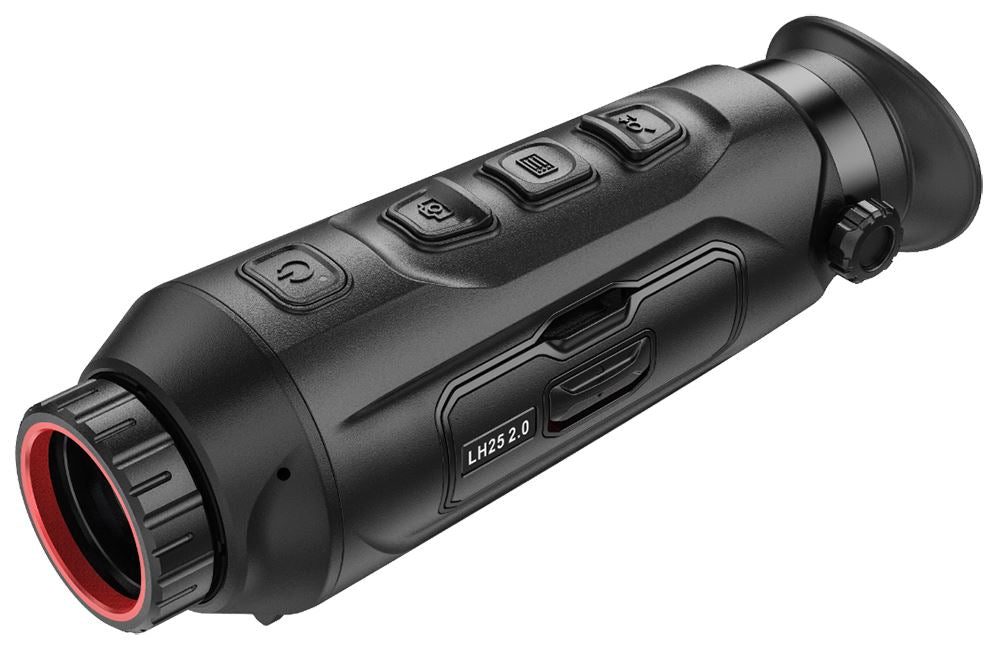

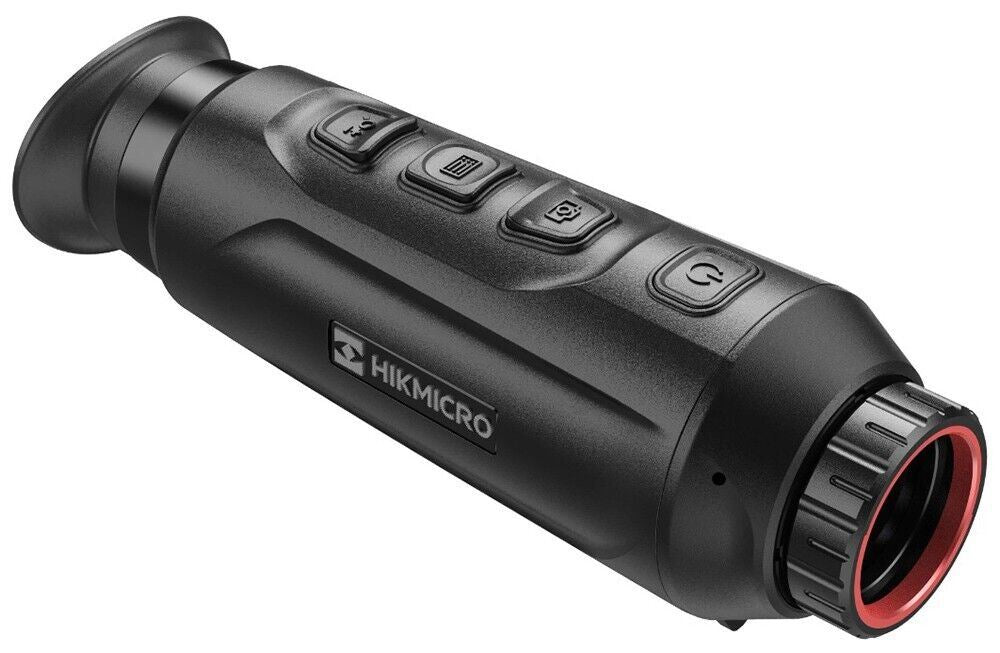

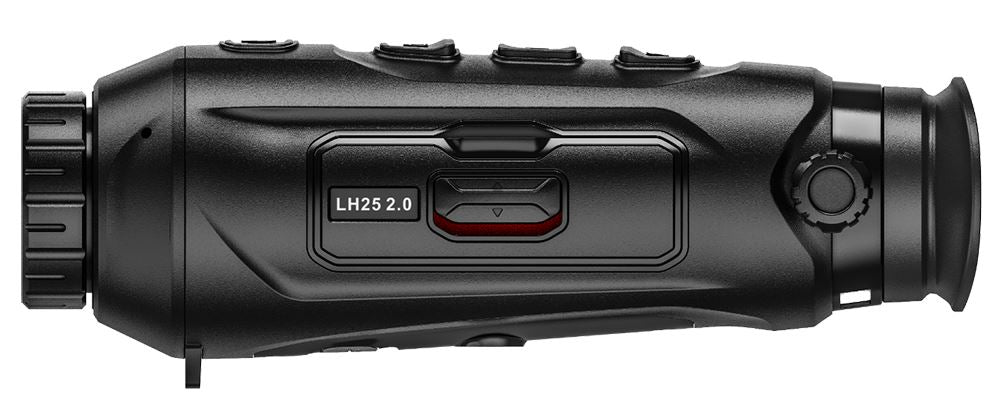

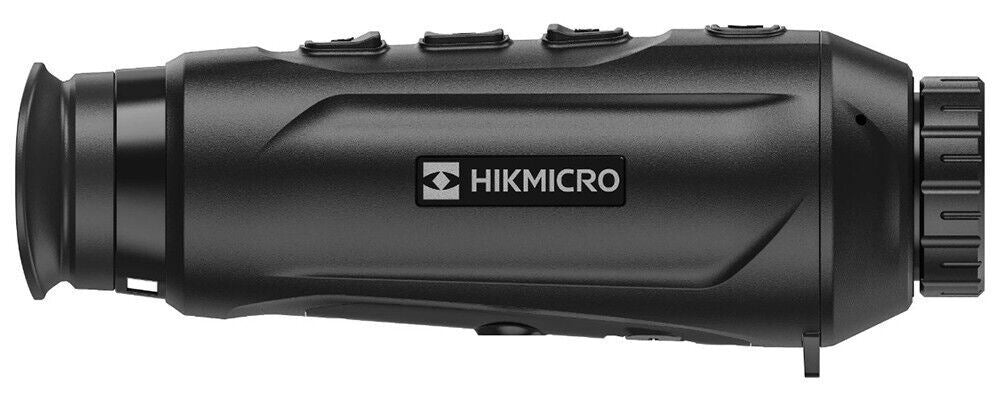

Introducing the new Lynx 2.0 25mm thermal monocular. Sharing the same design philosophy,

robust build quality and high performance thermal sensors as the class leading Falcon and Condor

monoculars, the Lynx 2.0 redefines expectations from entry level thermal products.

High performance thermal – At the core of the Lynx 2.0 25mm is HIKMICRO’s latest generation,

384px Sub 20 mK NETD sensor that pairs with the advanced, F1.0 lens to detect very small changes

in temperature and deliver an incredibly detailed image, even in the most challenging conditions. The

15mm Focal length offers 2.4x base mag with up to 8x digital magnification giving you 2.4-19.2x

magnification range.

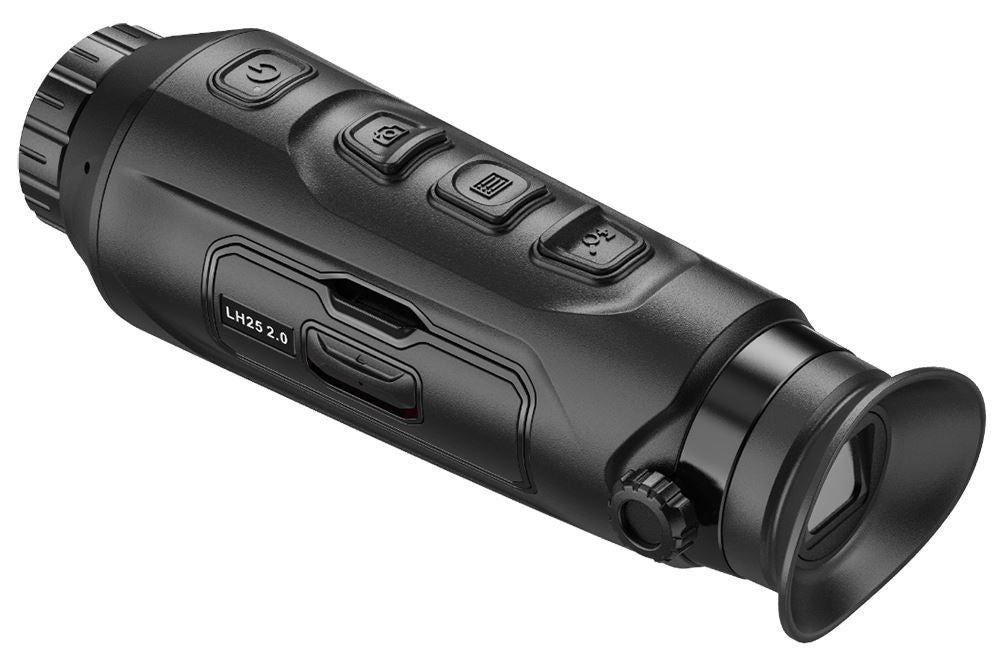

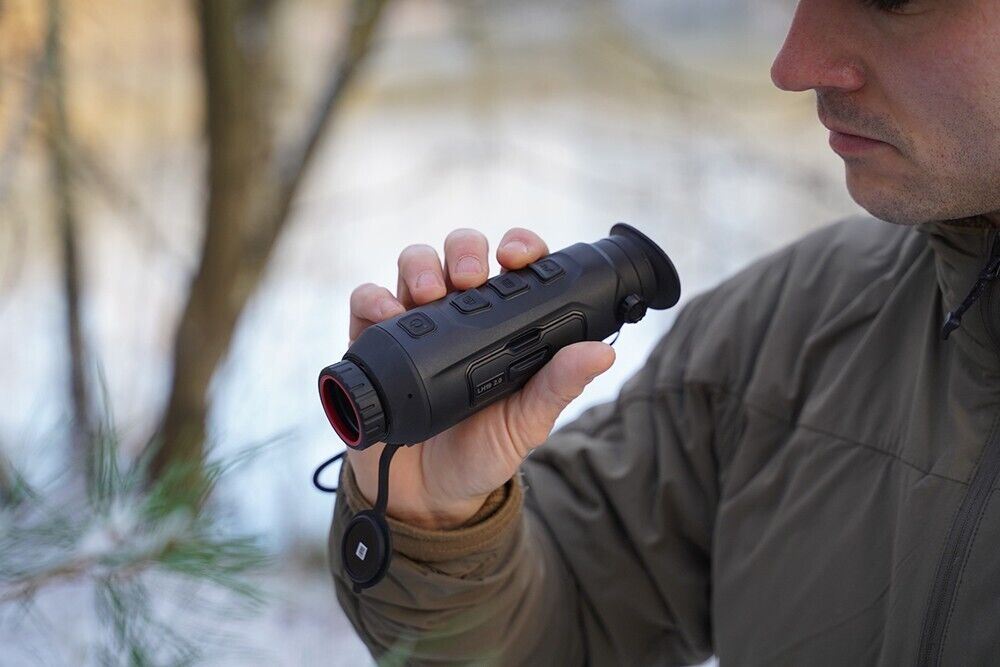

Compact and powerful - Built on a robust magnesium-alloy chassis, the Lynx 2.0 has a distinctly

premium feel from the first time you pick it up. The updated chassis design also features a removable

18650 battery delivering up to 6.5 hours of run time. The ergonomic buttons fall easily to hand and

allow you to intuitively take control of the main features, even in complete darkness. The large OLED

screen gives a great view of your surroundings while the soft eyecup prevents unwanted light spill.

Digital connectivity – The Lynx 2.0 is supplied with the latest HIKMICRO software which gives you

fast access to commonly used options like brightness and contrast and allows you to add a PIP

screen to your monocular. The Lynx 2.0 offers a choice of four thermal colour profiles, the ability to

record pictures or video and WiFi to allow you to connect, stream and control from the HIKMICRO

sight app.

The lower the NETD value, the better the imaging

Thermal imaging works by sensing tiny differences in temperature, and the more sensitive the sensor

is to minute contrasts, the better and more clear the image in the viewfinder. Lynx 2.0’s sub 20mK

NETD sensors capture the sharpest, most informative images, even in challenging conditions; this

means that you can not just find the heat of people, animals and birds, but capture the detail of the

surroundings to aid identification.

Convenience is king

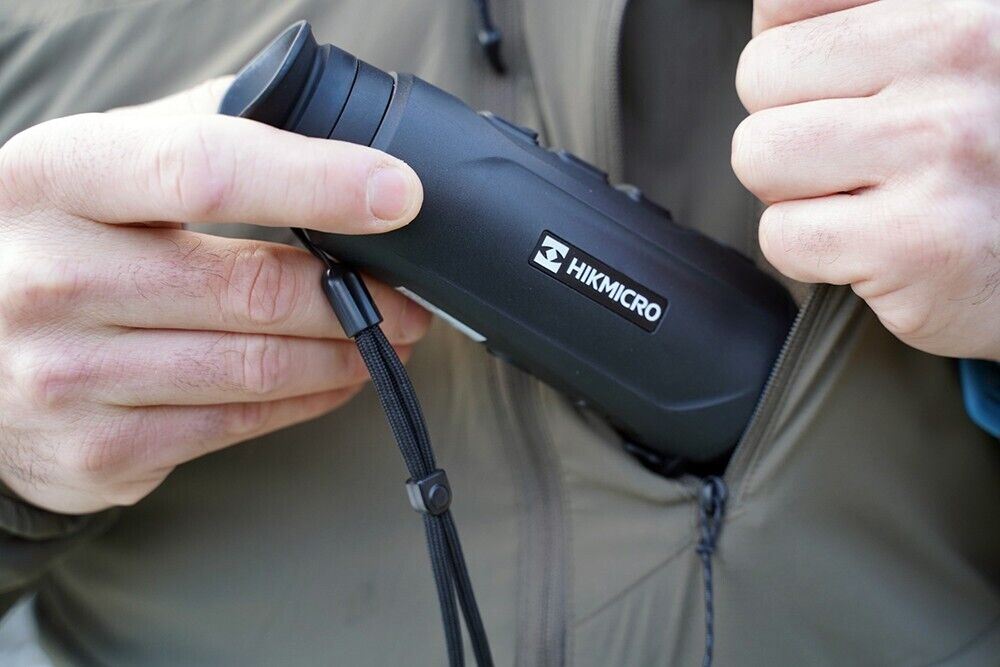

The Lynx 2.0 has been redesigned to maximise convenience in every area. The size and weight, at

under 175mm in length and under 300g with battery, combine with the rugged build and comfortable

rounded shape to produce a powerful device that can easily be carried and used at all times. The new

power system uses industry-standard rechargeable 18650 batteries for a continuous run-time of up to

6.5 hours, which can be renewed by a quick switch of the battery to a (supplied) spare. Lynx 2.0 also

features a 3 second Fast Boot time, to easily keep pace with the action in the field.

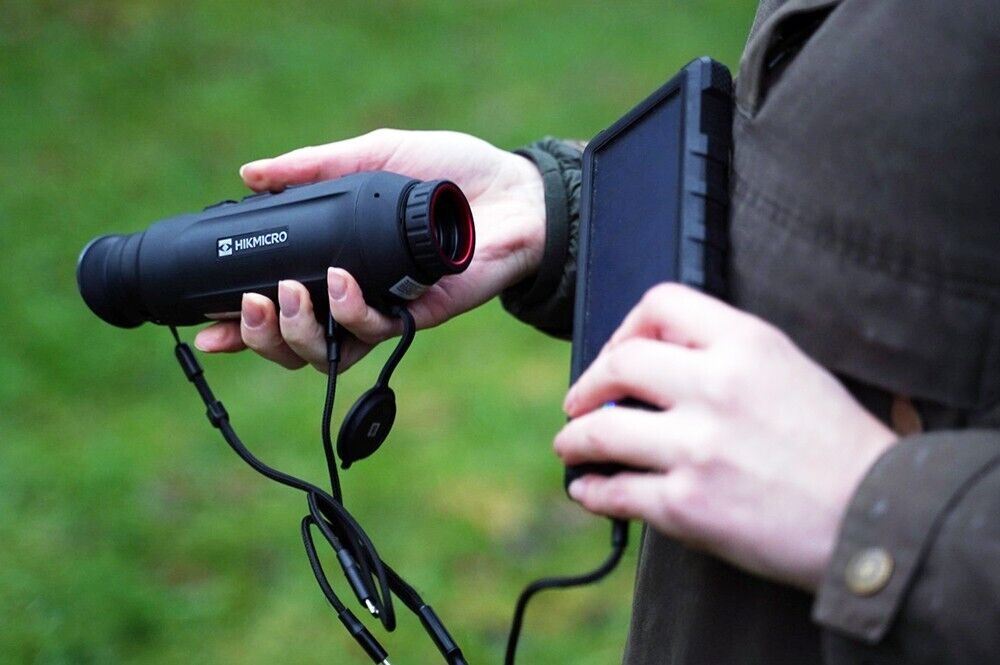

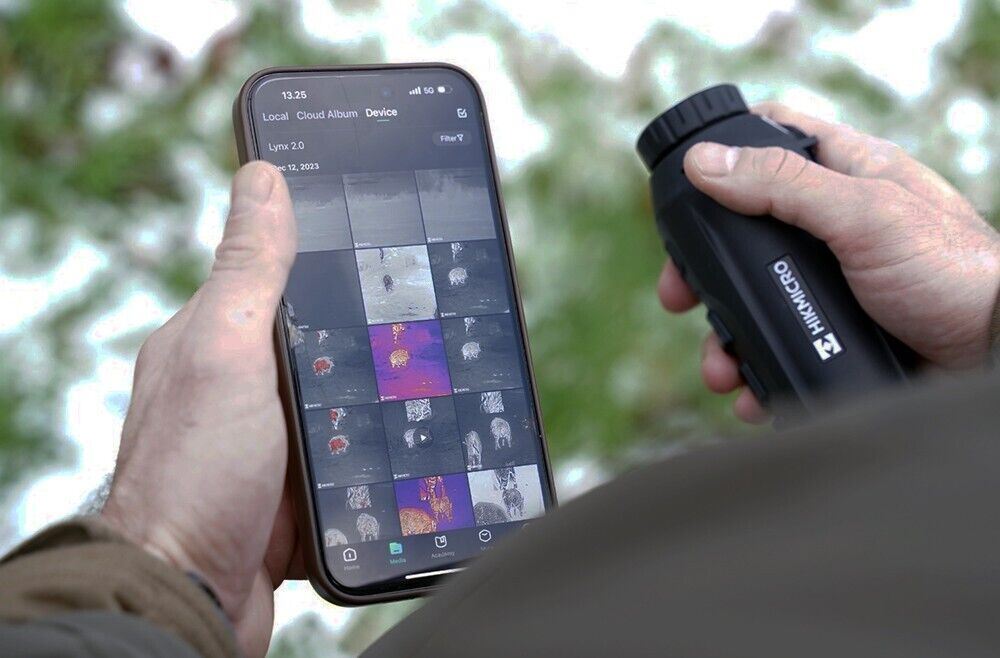

Integrated phone or tablet hotspot

HIKMICRO’s Sight App links Lynx 2.0 to your phone or tablet, creating a second display and adding

functionality: You can control the device via the app, view and share recorded images and video,

share the thermal view with others in your group, and control and update the software settings.

The Lynx 2.0 is the perfect, versatile companion device for hunting, ecological survey, wildlife

observation, search & rescue and security applications. The affordable price, high performance and

robust, proven build make it a natural choice and it seems well set to take over the best-seller crown

from its much-loved predecessor.

• High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
• 384 × 288 resolution with 12μm detector
• 1024 × 768 resolution 0.39-inch OLED display
• Replaceable and rechargeable Li-ion battery
• 275 g lightweight, with a compact and ergonomic design
• Up to 6.5 hours of continuous operation

What’s Included?

• HIKMICRO Lynx 2.0 25mm 384px (LH25 2.0) Thermal Monocular
• Quick start guide
• Non-dust cloth
• USB Cable
• Protective bag
• Wrist strap
• Charger
• 18650 Battery x2

Specification

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 384 × 288
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 20 mK (@25°C), F# = 1.0
• Lens (Focal Length): 25 mm, f1.0
• Focus Mode: Focus Ring
• Detection Range: 1200 m
• Min. Focusing Distance: 2.5 m
• Magnification: 2.4x to 19.2x (8x)
• Field of View(H × V), Degrees/ m @100m: 10.5° × 7.9°/ 18.4 m×13.8 m
• Display: 1024 × 768, 0.39 inch, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 6 mm
• Eye Relief: 20 mm
• Diopter (Range): -5 D to +3 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes
• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Storage Built-in EMMC: 16 GB
• PIP (Picture-in-Picture): Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement: Yes
• Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: 6.5-hour continuous running with CVBS and hotspot function off (@25°C)
• Type-C Power Supply: 5VDC, 2 A
• Supports External Power Supply: Yes
• Protection Level: IP67
• Dimension: 172.5 mm × 56.0 mm× 60.8 mm
• Weight: 277 g without battery
• Working Temperature: -30°C to +55°C

More Information

Brand    HIKMICRO

Product Name A-Z           HIKMICRO Lynx 2.0 25mm 384x288 12um Smart Thermal Monocular

SKU        HM-LH25-2.0

Unit Type            Thermal

Detection Range               1200m

Display Resolution           1024x768

Display Type       OLED

NETD     <25mK

Objective Lens Diameter               25mm

Operating Temperature -30/+55°C

Pixel Pitch            12μm

Refresh Rate      50HZ

Sensor Resolution            384x288

Video Recording               Yes
