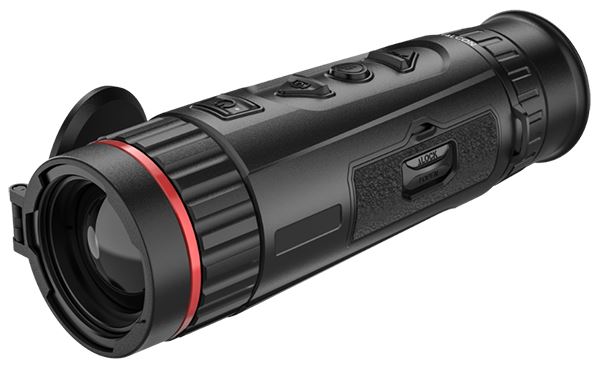

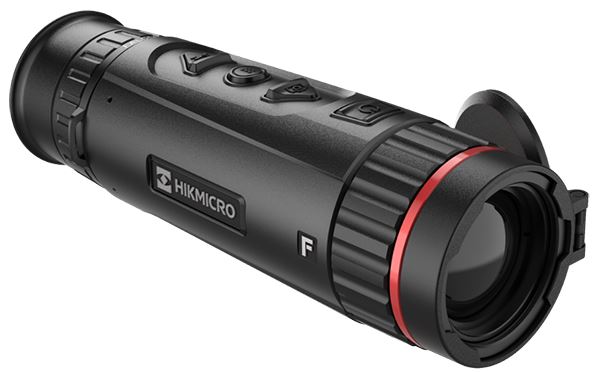

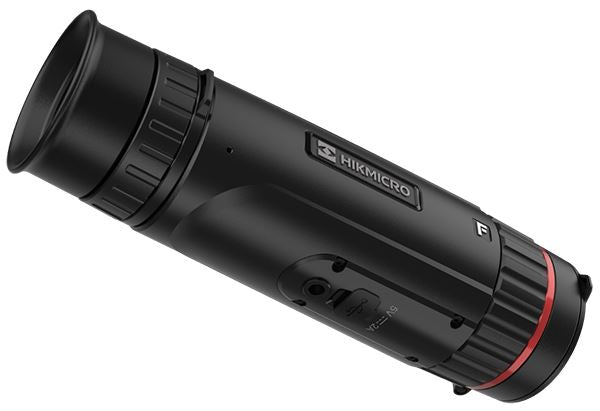

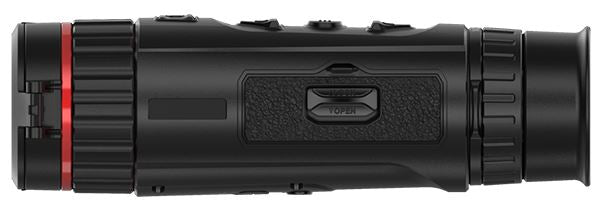

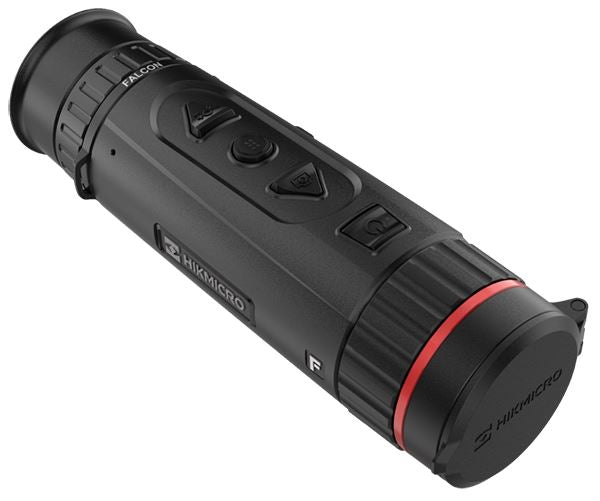

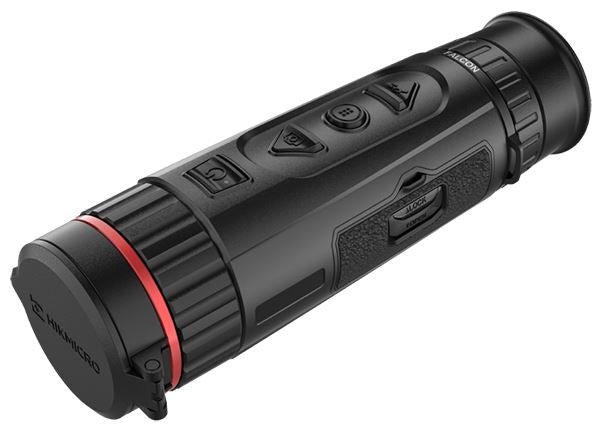

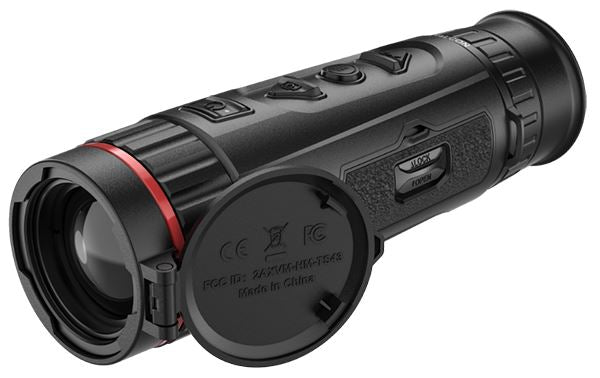

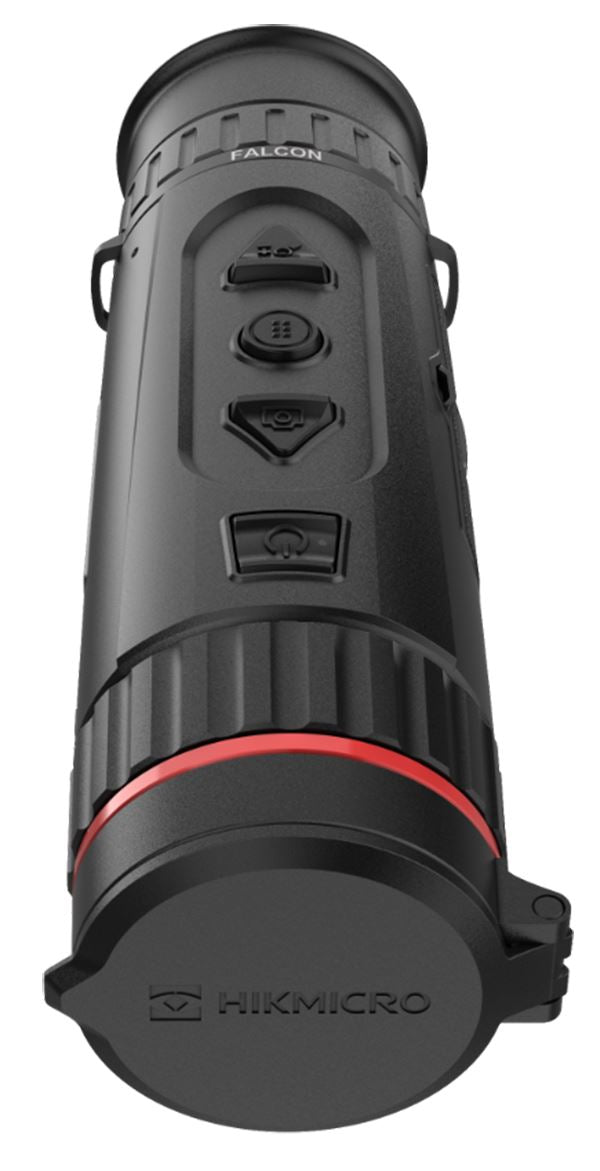

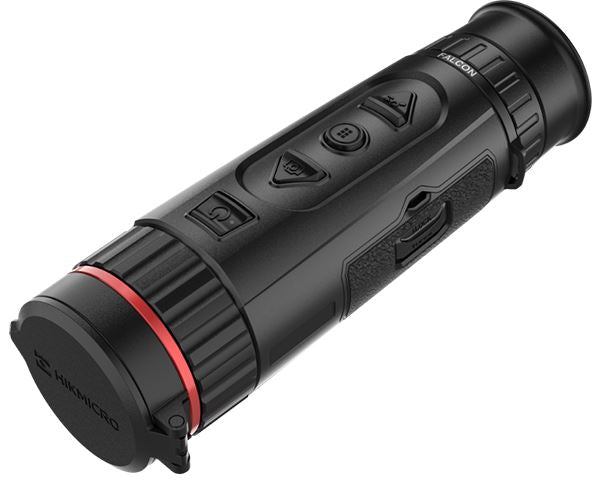

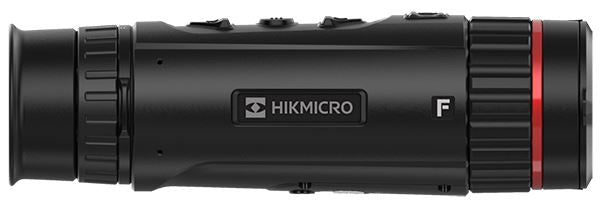

HIK Micro Falcon FH35 35mm 384 x288 12�m 20mk Hand Held Thermal Imager Monocular

Welcome to the Falcon series of advanced thermal monoculars - Boasting an industry-leading SUB 20 NETD sensor paired with a high-quality F1.0 lens the Falcon delivers the highest-performance thermal sensor available on the commercial market. This translates into an exceptionally high-quality image even in the harshest of weather conditions.

The highly thermally sensitive 384x288px 12um SUB 20 NETD sensor ensures perfect detail

recognition. Capable of detecting the smallest details like animal hair, subtle physical characteristics and information from the surroundings like branches and leaves – building you a reliable picture of your target and its surroundings.

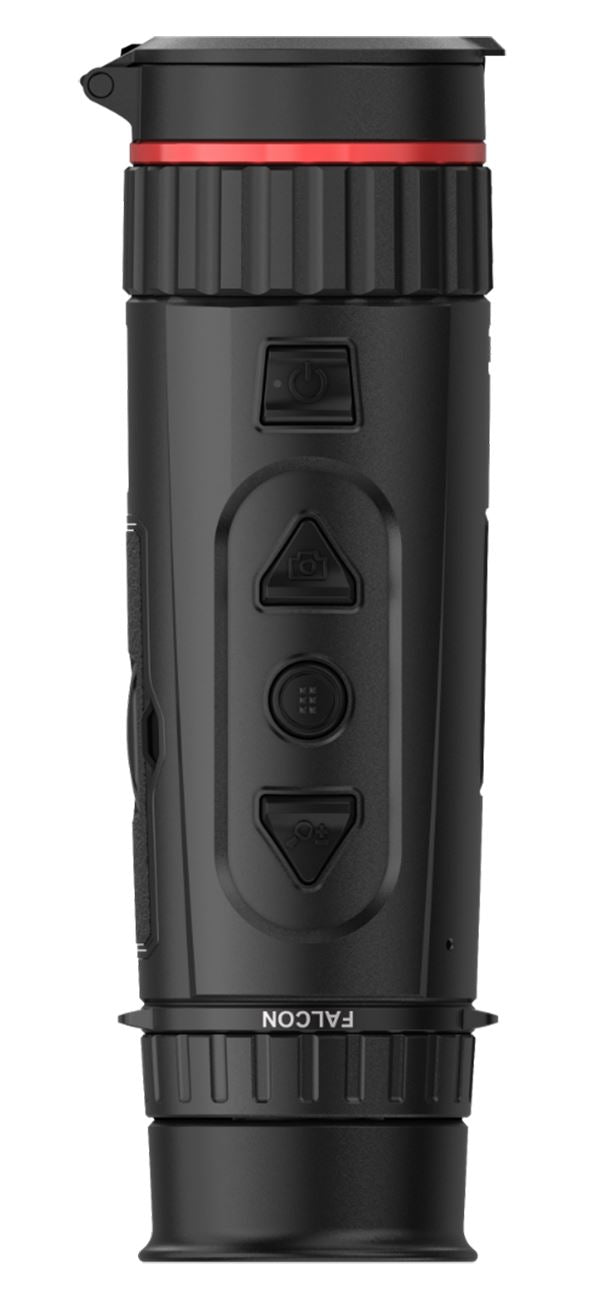

The Falcon replaces the popular Owl series and builds on the easy-to-use, ambidextrous chassis with a highly robust magnesium housing and four buttons that control all functions with ease, even in total darkness. Powered by a removable 18650 battery and with a run time of up to 6 hours the Falcon is ready for the longest hunting trips.

The eyecup would feel at home on a high-quality pair of binoculars, comfortably holding the display in the correct position, giving you a comfortable view of the large HD OLED screen.

The Falcon is the first HIKMICRO product to offer Image Pro mode. When activated image pro boosts the detail in the image both for animals and the background. In addition to Image Pro, the Falcon also boasts all of the normal software features found in HIK products including a choice of 4 colour pallets and access to the HIKMICRO Sight app which allows you to stream, control and record from your thermal monocular. The built-in 64GB memory also allows you to save images and videos directly onto the monocular.

• 384x288 resolution with 12µm sensor
• High sensitivity thermal module NETD <20 mK [@25 Degrees, F#=1.0]
• Replaceable and rechargeable Li-ion battery
• Up to 7 hours continuous operation
• Leading thermal image processing technology: Image Pro
• 1024 x 768 resolution 0.39-inch OLED display

Specification

MAIN

Sensor: 384x288px @ 12µm

Objective Lens (Focal Length):    35 mm

Detection Distance:         1800 m

SENSOR

Type:     VOx Uncooled Focal

Plane Arrays

Resolution, pixels:           384 × 288 px

Pixel pitch, µm: 12µm

Frame rate, Hz: 50 Hz

NETD:    <20mK

THERMAL OPTICS

Objective lens:  F1.0

Magnification (Optical): 3 x

Magnification (Digital):  1x, 2x, 4x, 8x

Field of view:     7.53° × 5.65° (H × V)

DISPLAY

Type      10mm, OLED

Resolution, Pixels:           1024 x 768

Colour Palettes: Black Hot, White Hot, Red Hot, Fusion

VIDEO RECORDER

Build in memory, Gb:     64 Gb

Image Capture: Yes

Video Record:    Yes

ADDITIONAL FEATURES

Image Pro Mode:             YES

Hot Tracking:      YES

WiFI hot spot:    YES

HIKMICRO Connect App support:              YES

ENVIRONMENTAL

Degree of protection, IP code:    IP67

Dust protection:               Protected against dust ingress

Water protection:            Protected against temporary submersion in water

Operating temperature range:   -30 °C to 55 °C

WEIGHT & SIZE

Dimensions, mm:             188 mm x 58 mm x 65 mm

Weight, kg:         0.5 kg

POWER SUPPLY

Battery type:      18650 Removable battery

Operating time on battery

(WiFi & Hot tracking disabled):   7 Hours continuous running

Charging interface:          External charger (Supplied)

Warranty Period

Main Unit:           3 Years

SKU:      HM-FH35
