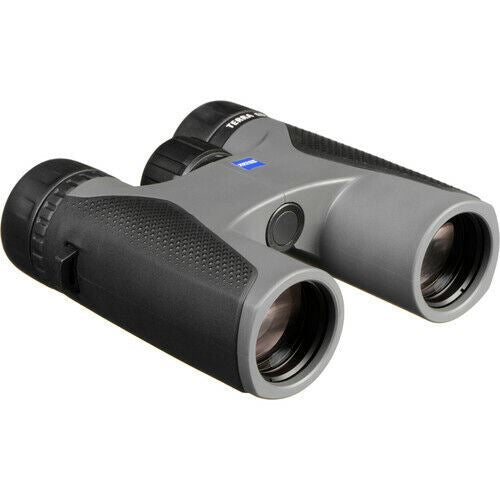

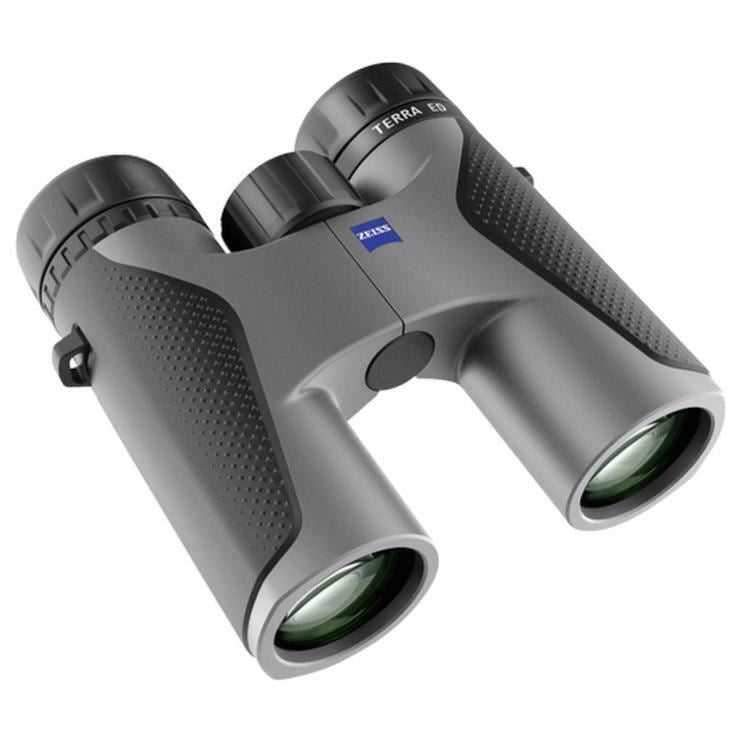

Carl Zeiss Terra ED 8 x 32 Grey / Black Mid Size Binoculars (UK Stock) BNIB NEW

The Grey2017 edition of Zeiss Optics' 8x32 Terra ED Binocular features a redesigned ergonomic chassis that makes holding them more comfortable, especially during long glassing sessions. Optically, they retain the exceptional elements that are the hallmarks of the Terra ED including compact Schmidt-Pechan roof prisms, SCHOTT extra low-dispersion (ED) glass, and the proprietary multi-coatings. These complementary technologies and elements work together to produce an immersive observational experience that presents clear and bright views, despite the relatively small objectives, with accurate color representation and virtually zero distortion across the entire wide field of view.

The comfortable ergonomic chassis is made of a fiberglass reinforced polycarbonate to help reduce weight, without sacrificing strength while adding impact and temperature resistance. Being resistant to temperature changes not only ensures that the housing will remain a constant temperature, even in cold and wet conditions, but will not experience the expansion and contraction common in metal chassis that can cause the optical elements to move out of alignment over time and preventing the binocular's ability to achieve sharp focus. The chassis is covered in a black rubber armoring that helps to protect it from drops and impacts, and provides a slip-resistant grip.

Optical Performance

8x magnification

32mm objective lenses

Roof prism optical path

The compact Schmidt-Pechan prism design corrects the view while allowing for thinner optical tubes versus the more common Abbe-Koenig design

SCHOTT ED glass elements reduces chromatic and spherical aberrations to produce views with true color rendition without halos, diffraction, or distortion across the entire field of view

Zeiss proprietary hydrophobic multi-coated optics sheds dust, dirt, and oils while improving light transmission, color rendition, sharpness, and contrast

Short 5.25 foot close focus distance

Wide 61° apparent angle of view

442-foot field of view at 1000 yards

Long 16.5mm eye relief

Comfortable 4mm exit pupil

Use and Handling

Closed-bridge configuration

Large fast-focus center wheel

±3 right-eye dioptric correction

56-74mm inter-pupillary adjustment range

Twist-up click-stop rubber eyecups for comfortable use with or without eyewear

Construction Details

Impact, corrosion and temperature-resistant fiberglass-reinforce polycarbonate housing

Temperature resistance prevents expansion and contraction in extreme temperature changes which prevents optical components from moving out of alignment

Protective black rubber armor

Nitrogen-filled for water and fog-proof performance

Submersible to 100 mbar of pressure, or approximately 3' (1m)

Operating Temperature 5 to 140°F (-15 to 60°C)

Weight: 18 oz

Specifications

Prism Type Roof

Magnification 8x

Objective Lens Diameter 32mm

Angle of View 7.6° (actual)

61.0° (apparent)

Field-of-View 442.0' @ 1000 yd / 146.7 m @ 1000 m

Minimum Focus Distance 5.25' / 1.60 m

Exit Pupil Diameter 4.0 mm

Eye Relief 16.5 mm

Inter-pupillary Adjustment 56.0 - 74.0 mm / 2.2 - 2.9"

Dioptric Correction ±3

Focus Type Center

Tripod Mount None

Dimensions 4.9 x 4.6" / 12.45 x 11.68 cm

Weight 18.0 oz / 510 g
