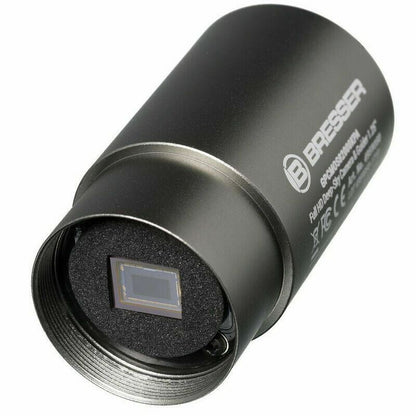

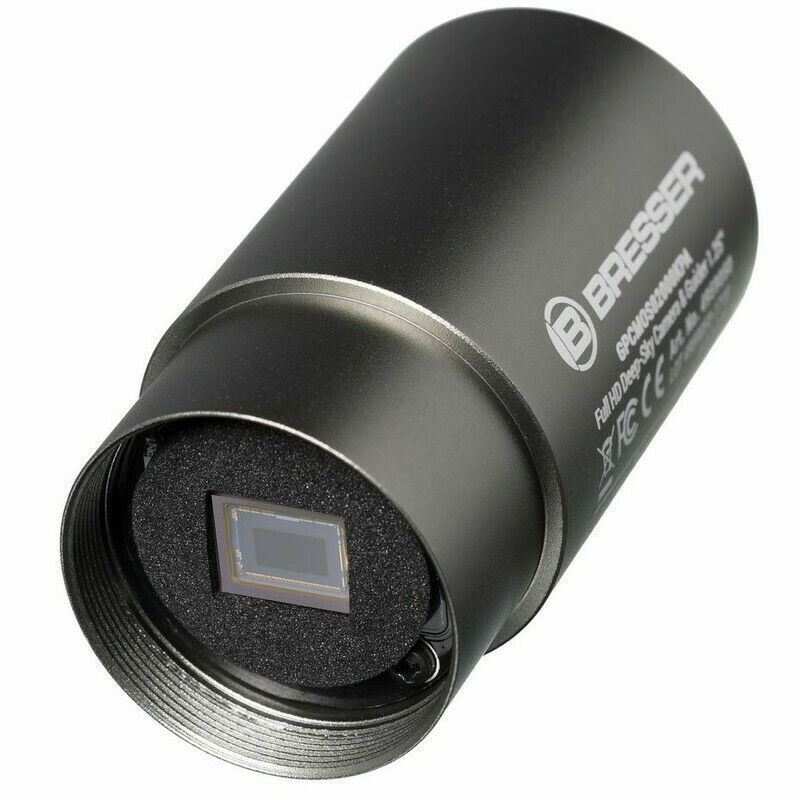

One of the main characteristics of the new back-illuminated SONY IMX290 CMOS sensor in the Bresser Full HD Deep-Sky Camera & Guider 1.25", is the high sensitivity to light which makes it possible to also capture deep-sky objects without active cooling. SONY has increased the quantum efficiency up to 77% at 533nm wavelength which is much better than many rival CMOS sensors could achieve in the past.
The camera's forte is both Planetary, Lunar and Solar high speed imaging - and long duration deep sky astrophotography as well. At full 1936 x 1096 resolution, the Bresser Full HD Deep-Sky Camera & Guider can film at 15fps and can go significantly higher than this when the camera's resolution is reduced to the central area of the chip. For longer duration imaging, the maximum exposure time can be set to a generous 16 minutes. There is no IR cutoff filter in front of the sensor to ensure that the maximum amount of IR/Near IR wavelengths get to the chip, increasing sensitivity, particularly on hydrogen rich objects. However, when imaging the Moon and the brighter planets, the use of an IR cut filter would be recommended.

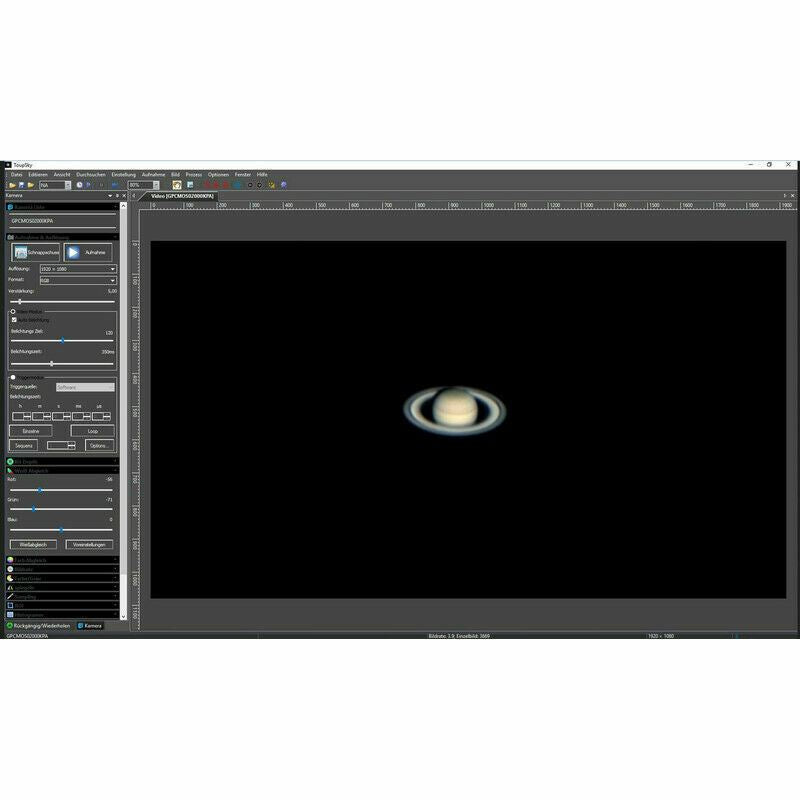

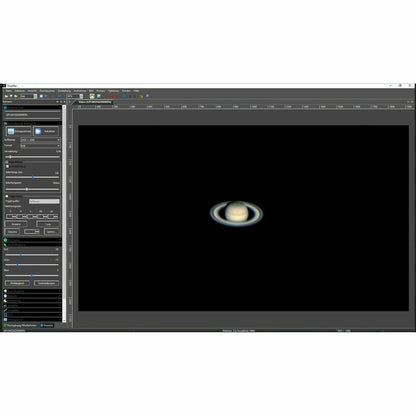

This camera is provided with camera control software, though is also compatible with a large number of free and paid for camera control programs.

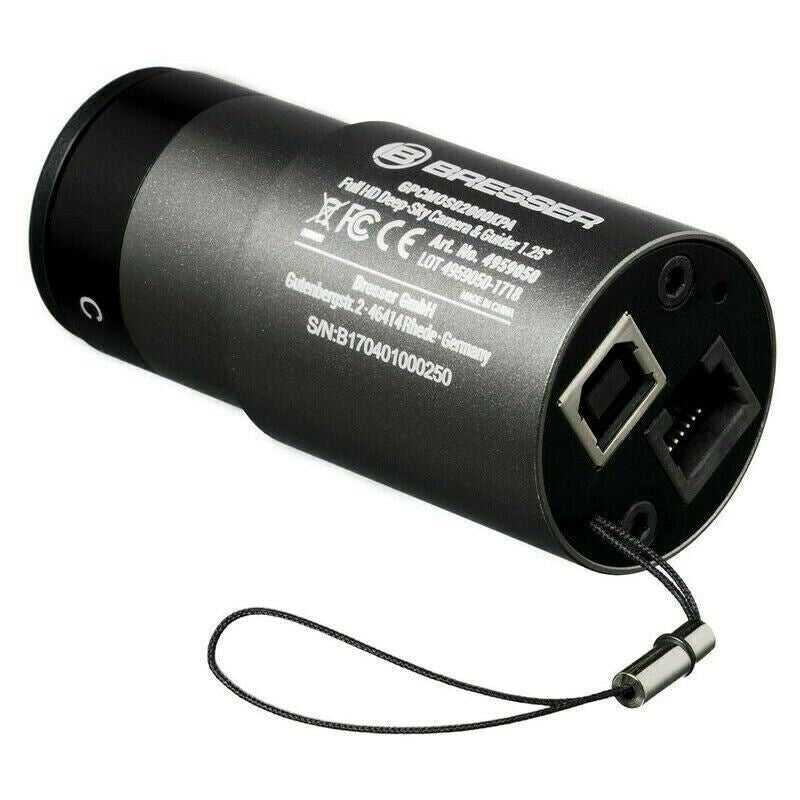

In addition to its use as an imager, autoguiding is also a simple process with this camera. Connect this camera with the built-in ST-4 port direct to your equatorial mount and use the camera to guide the mount with many of the popular autoguiding programs available. The sensor's high sensitivity ensures you'll always have a suitable guide star available, even at short exposure times. An industry standard ST-4 connecting cable is also included.
You can use this camera with any guiding-telescopes or off-axis-guider which accept a 1.25“ barrel, 1.25“ filter thread (M28.5x0.6) or c-mount adapter thread (1“x1/32“).
IMPORTANT NOTES:
This is not a stand-alone guider-camera. You always need a Windows 7 / 8 / 10 computer for taking pictures and for autoguiding.
The autoguider software is not included. You can use PHD Guiding, Guidedog, Metaguide, Guidemaster (Freeware) or AstroArt, MaxIm DL (chargeable).
DOWNLOAD PHD-Guiding: http://www.stark-labs.com/phdguiding.html
DOWNLOAD GuideDog: http://barkosoftware.com/GuideDog/index.html
Specification
Camera type: BRESSER GPCMOS02000KPA colour
Sensor: SONY IMX290 CMOS colour, back-illuminated
Image and video size: Full HD 1936 x 1096 Pixel (video 15 FPS)
Native sensor size in pixel: 1936 x 1096
Exposure times: 66µs bis 16min
Binning: YES , 2x2
Megapixel: 2.1 MP
Sensor size in mm: 5.6 x 3.1
Pixel size: 2.9 µm x 2.9 µm
Bit depth: 8/12 switchable
ST-4 compatible autoguider: YES
CNC machined housing made from Aluminum
Protection strap at camera housing
Camera barrel diameter: 1.25" ( 31.7mm)
Camera connecting thread: C-Mount + 1.25" filter thread
Computer interface: USB 2.0
Extension tube 1.25" included
No IR cut filter installed
Operating system: WINDOWS 7, 8 and 10
ASCOM driver included
Field of view for various focal lengths in mm (listed in arcminutes):
400 mm - 48,2´x 27,3´
500 mm - 38,6´x 21,8´
600 mm - 32,1´x 18,2´
700 mm - 27,5´x 15,6´
800 mm - 24,1´x 13,6´
900 mm - 21,4´x 12,1´
1000 mm - 19,3´x 10,9´
1250 mm - 15,4´x 8,7´
1500 mm - 12,9´x 7,3´
1750 mm - 11,0´x 6,2´
2000 mm - 9,6´x 5,5´

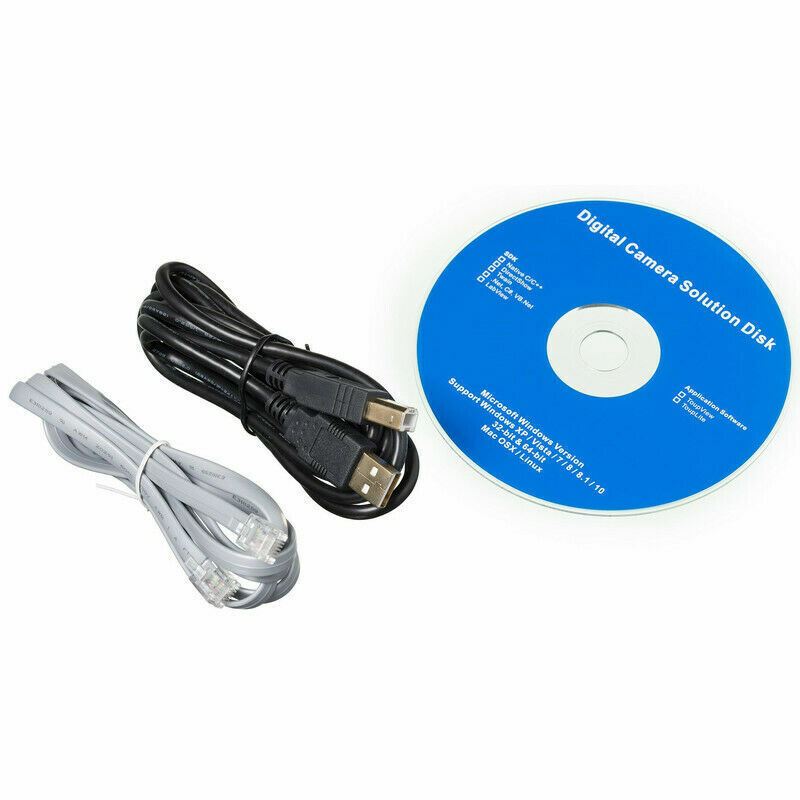

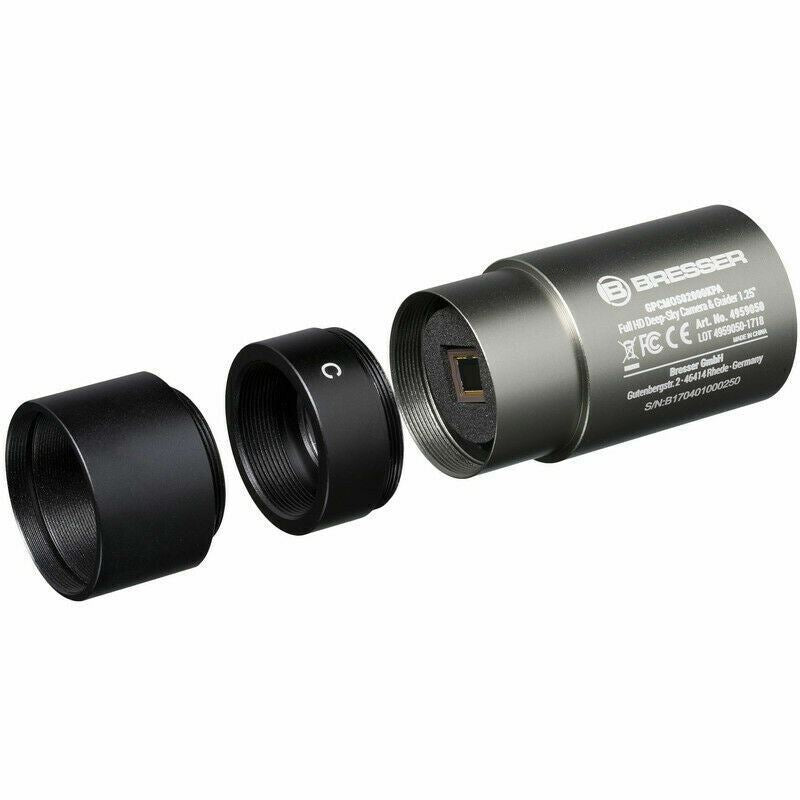

What's in the box:
Full HD Camera
C-Mount adapter
USB 2.0 PC connecting cable with 200cm length
Interface cable for ST-4 Autoguider port with 150cm length
Dust cap for camera barrel
Software CD
